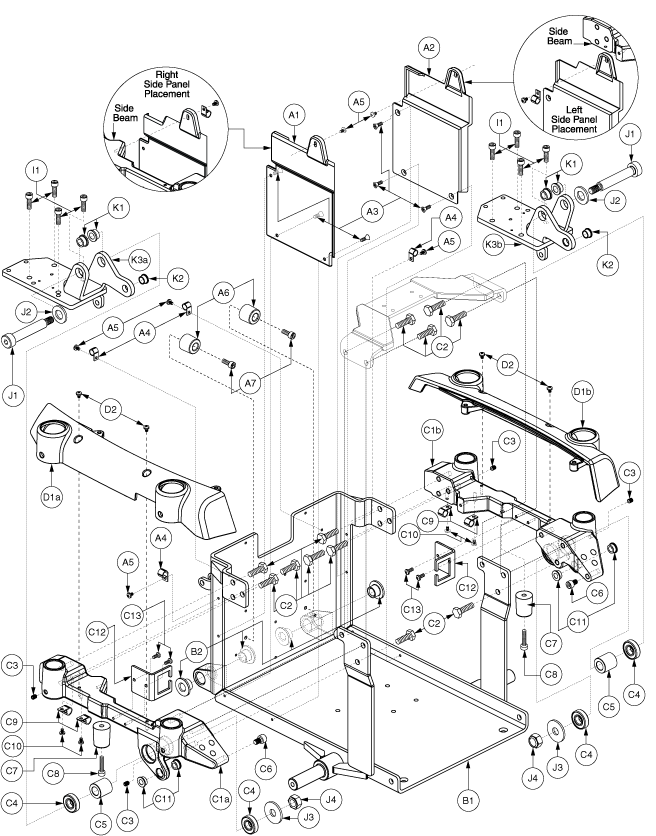

FRAME, ASSY, CENTER FRAME SECTION, QUANTUM6000, E-1059-042
SHROUD, SIDE PANEL, BLACK, RIGHT, E-1059-027
SHROUD, SIDE PANEL, BLACK, LEFT, E-1059-026
SCREW, PFH, BLACK ZINC, M4-.7 X 8MM
Pride Mobility
SCREW, SOCKET HEAD, M6X1.0 X 16, ISO 4762, CL 12.9, BZ (USE SCRSHCS1153) (SCRSHCS1001)
FRAME, ASSY, MAIN, W/BUSHINGS, QUANTUM6000, E-1059-035
FRAME, WELDMENT, MAIN, E-1059-005
BEARING, FLANGE, DELRIN, 12.16MM ID X 18.10MM OD X 14MM TH X 30MM FOD X 3MM FTH, B-1005-024
FRAME, ASSY, SIDE FRAMES, PAIR, METALLIC BLUE, VERSION 3, QUANTUM6000
FRAME, ASSY, RIGHT SIDE, BLUE, VERSION 3, QUANTUM6000
FRAME, ASSY, LEFT SIDE, BLUE, VERSION 3, QUANTUM6000
Pride Mobility
FRAME,ASSY,RIGHT FORGED SIDE FRAME SECTION,QUANTUM6000/6000Z,D-1065-024 (FRMASMB11452)
Pride Mobility
FRAME,ASSY,LEFT FORGED SIDE FRAME SECTION,QUANTUM6000/6000Z,D-1065-025 (FRMASMB11453)
FRAME, MAIN SIDE BEAM, BLACK, FORGED, RIGHT, E-1065-025
FRAME, MAIN SIDE BEAM, BLACK, FORGED, LEFT, E-1065-026
SCREW, HHCS, BLACK ZINC, M8-1.25 X 25MM, GRADE 12.9
Pride Mobility
BEARING, BALL, 12 ID X 28 OD X 8 THK, DOUBLE SEAL (6001-2RSH) (DWR1101A019B)
Pride Mobility
SPACER,ZINC,STEEL,13MM ID X 23MM OD X 24MM TH,B-1059-012 (DWR1059B012)
SCREW, SHCS, BLACK ZINC, M8-1.25 X 12MM, GRADE 12.9
Pride Mobility
BUMPER,BLACK,RUBBER,6.5MM ID X 25MM OD X 32MM TH,SHORE 90 A,B-1056-062 (DWR1056B062)
Pride Mobility
SCREW, SOCKET HEAD, M6X1.0 X 25, ISO 4762, CL 8.8, BZ (SCRSHCS1132)
Pride Mobility
CLAMP,CABLE,BLACK,NYLON,.38" DIAMETER,P-CLIP,C-1059-042 (CLPCBLC1028)
Pride Mobility
SCREW, PAN HEAD, TYPE H, M4X0.7 X 6, FT, ISO 7045, CL 4.8, BZ (SCRPPH1304)
BEARING, FLANGE, DELRIN, 8MM ID X 13.10MM OD X 6.5MM TH X 16MM FOD X 1.5MM FTH, B-1005-023
MOUNTING BRACKET, MOTOR CONNECTION, FORGED SIDE FRAME, C-1065-023
SCREW, PAN HEAD, TYPE H, M4X0.7 X 10, FT, ISO 7045, CL 4.8, BZ (USE SCRPPH1163)
SHROUD, ASSY, BLUE, SIDE FRAME, RIGHT, QUANTUM6000/6000Z
SHROUD, ASSY, BLUE, SIDE FRAME, LEFT, QUANTUM6000/6000Z
SHROUD, PAINTED, BLUE, SIDE RAIL, RIGHT, E-1065-028
SHROUD, PAINTED, BLUE, SIDE RAIL, LEFT, E-1065-027
Monster Scooter Parts
M4-.7x10 mm Black Pan Head Machine Screw (SCRPPH1163/SCRPPH1050)
ANTI-TIP, TRANSFER LINK, ACTIVE-TRACK, Q6000, VERSION 2
FRAME, ASSY, FRONT ARM W/CASTER, REINFORCED, BLUE, RIGHT, QUANTUM6000, E-1059-070
FRAME, ASSY, FRONT ARM W/CASTER, REINFORCED, BLUE, LEFT, QUANTUM6000, E-1059-069
MOTOR MOUNT,ASSY,ACTIVE-TRACK,RIGHT,W/MOUNTING HARDWARE,QUANTUM6000Z,HAMMER MOTORS,C-1065-025
MOTOR MOUNT,ASSY,ACTIVE-TRACK,LEFT,W/MOUNTING HARDWARE,QUANTUM6000Z,HAMMER MOTORS,C-1065-026
Pride Mobility
SCREW, SOCKET HEAD, M8X1.25 X 25, ISO 4762, CL 12.9, BZ (SCRSHCS1172)
Pride Mobility
MOTOR MOUNT,ASSY,ACTIVE-TRACK,RIGHT,W/MOUNTING HARDWARE,QUANTUM6000Z,C-1065-034 (FRMASMB17600)
Pride Mobility
MOTOR MOUNT,ASSY,ACTIVE-TRACK,LEFT,W/MOUNTING HARDWARE,QUANTUM6000Z,C-1065-033 (FRMASMB17599)
Pride Mobility
BOLT, SHOULDER, 12 SD X 60 GL, M10X1.5 THD, BLACK (SEE DRAWING: C1005-011-A) (BLTASHL1157)
Pride Mobility
WASHER, FLAT, 13ID X 24OD X 2.5THK, ISO 7089-12-200 HV, BZ (USE WASMETR1032) (WASMETR1050)
Pride Mobility
WASHER, FLAT, 10.5 ID X 30 OD X 2.5 THK, ISO 7093, BZ (WASMETR1043)
Pride Mobility
NUT, LOCK, PVTP, M10X1.5, ISO 898-2, CL 8, BZ (DWG 1714169)
ACTIVE-TRACK MOTOR MOUNT, ASSY, RIGHT, QUANTUM6000Z, C-1065-005
ACTIVE-TRACK MOTOR MOUNT, ASSY, LEFT, QUANTUM6000Z, C-1065-006
