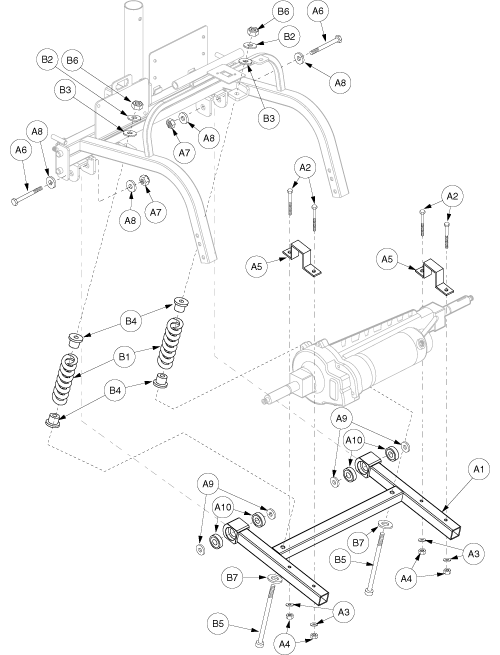

Pride Victory XL (SC270) - Trail Arm - Oct.31,2000 - Sub

FRAME, TRAIL ARM, VICTORY XL/BOXSTER, 4 WHEEL, 70 DEGREE BRACKETS

WELDMENT, TRAIL ARM, H-FRAME, VICTORY XL/BOXSTER, 4 WHEEL, 70 DEGREE BRACKETS, D-9500-023

SCREW, HHCS, ZINC, M6-1.0 X 40MM

WASHER, FLAT, ZINC, M6 X 14MM OD X 1MM TH

NUT, NYLOCK, ZINC, M6-1.0

BRACKET, U', TRANSAXLE MOUNTING, LINE XL

SCREW, HHCS, M12-1.75 X 70MM, G8.8

NUT, JAM, STEEL INSERT, ZINC, M12 X 1.75T

WASHER, FLAT, ZINC, 12MM ID X 26MM OD X 2MM TH

WASHER, NYLON, M12 X 22MM OD X 3MM TH

BEARING, BALL, 12MM ID X 28MM OD X 8MM THK, (6001Z)

SUSPENSION, ASSY, STRUT, REAR, VICTORYXL/BOXSTER, 4 WHEEL, PHASE 2

SPRING, ZINC, 65MM L, 5MM WIRE DIAMETER, 9 TURNS

WASHER, FLAT, ZINC, 8MMID X 22MMOD X 2MMT

WASHER, DAMPER, 9MM ID X 21MM OD X 3MM TH

BUSHING, DOUBLE ENDED FLANGE, VICTORY XL

SCREW, HHCS, BLACK ZINC, M8-1.25 X 95MM, GRADE 10.9

NUT, NYLOCK, BLACK ZINC, M8-1.25

WASHER, FLAT, ZINC, M8 X 17MM OD X 1MM TH
