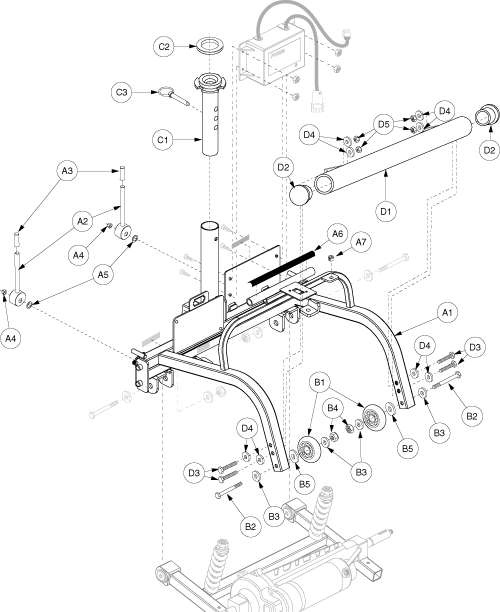

Pride Victory XL (SC270) - Rear Frame - Feb.15,2001


Pos.
MPN
Details
A1 - B5
FRMASMB2770

FRAME, ASSY, REAR, VICTORY XL/BOXSTER, 4 WHEEL, 70 DEGREE BRACKETS

---
A1
DWR9500E014

REAR FRAME WELDMENT, VICTORY XL/BOXSTER, 4 WHEEL, 70 DEGREE BRACKETS

---
A2
INDPART1868

LEVER, LOCK-UP, VICTORY

---
A3
PROHDLC1027

COVER, HANDLE, RED, LOCK LEVER

---
A5
WASLOCK1024

WASHER, LOCK, BLACK ZINC, 11MM ID X 17MM OD X 2MM TH

---
A6
VELHOOK1017

FASTENER, 25MM X 100MM, REUSABLE, HOOK

---
A7
DWR9500B054

BUSHING, FLANGE, 6.2MM ID X 12MM SOD X 14 MM FOD X 3MM FTN X 13MM L, SNAP-IN

---
A8
FRMASMB2771

FRAME, TRAIL ARM, VICTORY XL/BOXSTER, 4 WHEEL, 70 DEGREE BRACKETS

---
B1 - B5
WHLASMB1333

WHEEL, ASSY, ANTI-TIP, 3"

---
B1
WHLATIP1009

WHEEL, ANTI-TIP, 68MM OD X 26.5MM THK, B-1020-029

---
B2
SCRHHCS1361

SCREW, HHCS, BLACK ZINC, M8-1.25 X 65MM, GRADE 10.9

---
B4
NUTNYLK1012

NUT, NYLOCK, BLACK ZINC, M8-1.25

---
B5
WASNYLN1055

WASHER, NYLON, M11 X 19MM OD X 2MM TH

---
C1 - C3
FRMASMB2099

SEAT POST, ASSY, PEDESTAL, UPPER, HD, 8 STOP, 3 HOLE

---
C1
INDPART2020

SEAT POST, UPPER, PEDESTAL, HD, 8 STOP, 3 HOLE, WELDMENT

---
C2
BSHFLNG1027

BUSHING, FLANGE, 2-1/2" L X 1-1/4" FOD X 3/4" ID X 1/4" FTH

---
C3
PINCOTD1005

PIN, COTTERLESS DETENT W/RING, ZINC, M8 X 48MM

---
D1 - D5
FRMASMB2097

BUMPER, ASSY, REAR, VICTORY XL

---
D1
PROBUMP1012

BUMPER, REAR, WELDMENT, VICTORY XL

---
D2
PROECAP1037

CAP, END, 1 1/2", 14-20GA, SELF TAP

---
D3
SCRHHCS1079

SCREW, HHCS, BLACK OXIDE, M8-1.25 X 45MM

---
D4
WASSTND1067

WASHER, FLAT, ZINC, M8 X 17MM OD X 1MM TH

---
D5
NUTNYLK1011
