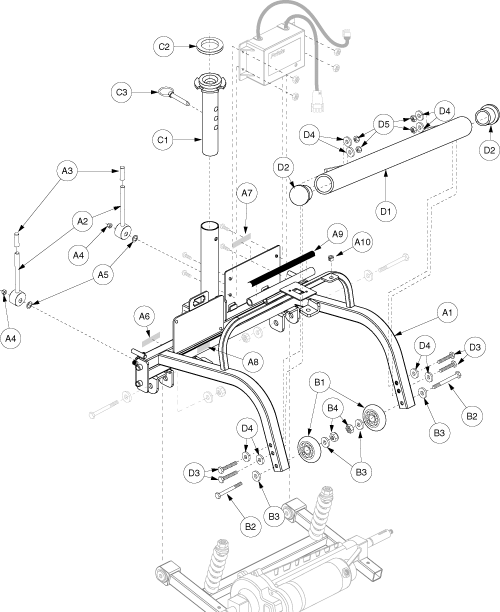

REAR FRAME WELDMENT, VICTORY XL/BOXSTER, 4 WHEEL, 70 DEGREE BRACKETS
LEVER, LOCK-UP, VICTORY
COVER, HANDLE, RED, LOCK LEVER
WASHER, LOCK, BLACK ZINC, 11MM ID X 17MM OD X 2MM TH
DECAL, LOCK/UNOCK, SC160/170, ORANGE
DECAL, "UNLOCK/LOCK", ORANGE
DECAL, SERIAL NUMBER, VICTORY XL
FASTENER, 25MM X 100MM, REUSABLE, HOOK
BUSHING, FLANGE, 6.2MM ID X 12MM SOD X 14 MM FOD X 3MM FTN X 13MM L, SNAP-IN
FRAME, TRAIL ARM, VICTORY XL/BOXSTER, 4 WHEEL, 70 DEGREE BRACKETS
WHEEL, ASSY, ANTI-TIP, 3"
WHEEL, ANTI-TIP, 68MM OD X 26.5MM THK, B-1020-029
SCREW, HHCS, BLACK ZINC, M8-1.25 X 65MM, GRADE 10.9
NUT, NYLOCK, BLACK ZINC, M8-1.25
SEAT POST, ASSY, PEDESTAL, UPPER, HD, 8 STOP, 3 HOLE
SEAT POST, UPPER, PEDESTAL, HD, 8 STOP, 3 HOLE, WELDMENT
BUSHING, FLANGE, 2-1/2" L X 1-1/4" FOD X 3/4" ID X 1/4" FTH
PIN, COTTERLESS DETENT W/RING, ZINC, M8 X 48MM
BUMPER, ASSY, REAR, VICTORY XL
BUMPER, REAR, WELDMENT, VICTORY XL
CAP, END, 1 1/2", 14-20GA, SELF TAP
SCREW, HHCS, BLACK OXIDE, M8-1.25 X 45MM
WASHER, FLAT, ZINC, M8 X 17MM OD X 1MM TH
