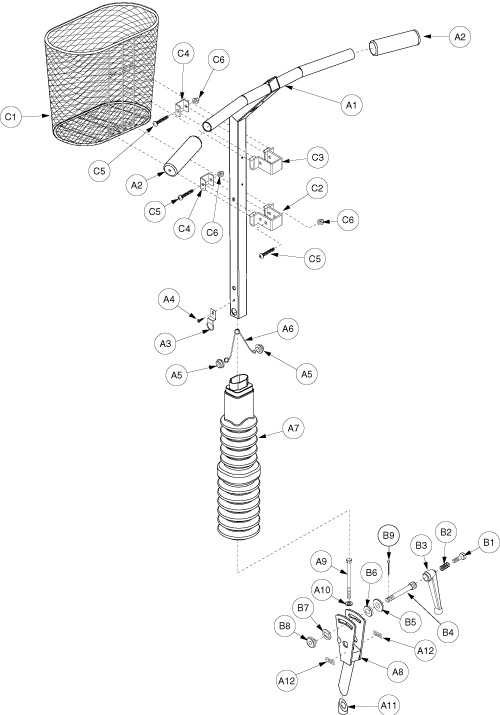

TILLER, ASSY, TILTING, EXTENDED WIDTH & LENGTH
TILLER, ASSY, TILTING, TEFLON COATED, 18-3/4"W X 25-1/2"L, WELDMENT EXTENDED WIDTH&LENGTH
GRIP, HAND, FOAM, BLACK, SMOOTH, 5-1/2"L
BRKT, RESRTAINT, SLIDE WASHER, TILTING TILLER, SC160/170
SCREW, PRH, ZINC, M4 X 15MM, SHEET METAL
BUTTON, PUSH, FOLDING PRESS, SC-150
SPRING, COMPRESSION, STEEL
TILLER, BOOT, RUBBER, BLACK, 6 RING W/SQUARE TOP, ACCOMODATES RELEASE LEVER
CONNECTOR, WEDGE, TEFLON COATED, TILLER, TILTING
SCREW, HHCS, M8-1.25 X 120MM, CHROME
NUT, TAPER, M8 X 1.25
DECAL, PRESS
HANDLE, ASSY, LOCKING, TILLER, VICTORY
BOLT, SHOULDER, M4 X 14MM, .7T
SPRING, MUSIC WIRE, WIRE DIAMETER, .7MM, 7.5MM ID, B-7600-012
TILLER, HANDLE, LOCKING, CHROME PLATED, (CL:143302CR)
BOLT, M8-1.25T X 48MM, INNER, LOCKING TEETH
WASHER, FLAT, ZINC, M8 X 22MM OD X 2MM TH
WASHER, NYLON, M8 X 19MM OD X 3.5MM TH
WASHER, WHITE, NYLON 6/6, 26.9MM OD X 2MM THK, SLIDE
NUT, SLIDE, M8 X 1.25T, C-9590-024
PIN, HAIRPIN COTTER, M8 SHAFT
BASKET ASSY, TILLER, SC 160/170
BASKET, 10 1/4"L X 14"W X 9"D, TILLER, LINE, ROUND
BRACKET, LOWER, BASKET, (CL: 110514)
BRKT, UPPER, BASKET, PE COATED, LINE INDUSTRIES
BRACKET, INSERT, (CL: 110515)
SCREW, PPH, ZINC, M6-1.0 X 35MM, (CL: 6S10602S)
NUT, NYLOCK, ZINC, M6-1.0
