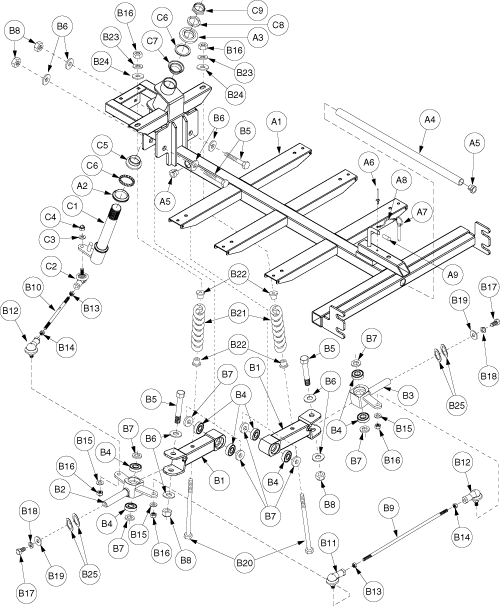

FRAME, ASSY, FRONT, SUSPENSION, W/SLOTS & LOCK-UP TUBE, V-XL
FRAME, FRONT, 39"L X 20"W, SUSPENSION, W/SLOTS & LOCK-UP TUBE, V-XL
CONE HEAD, LOWER, CHROME, B-1020-034
CONE HEAD, UPPER, CHROME, C-1020-029
HOSE, PVC, 15MM-18T X 500MM
BUSHING, FLANGE, PLASTIC, OPEN
RIVET, ALUM RIV/MAND, 4MM X 11MM
PIN, COTTERLESS DETENT W/RING, ZINC, M8 X 48MM
LANYARD, CHAIN, 105MM
COVER, HANDLE, RED, LOCK LEVER
AXLE, ASSY, BOXSTER/VICXL
AXLE, WELDMENT, BLACK POWDER COAT, V-XL
WHEEL, KNUCKLE/SPINDLE, LH, ZINC PLATED
WHEEL, KNUCKLE/SPINDLE, RH, ZINC PLATED
BEARING, BALL, 12MM ID X 28MM OD X 8MM THK, (6001Z)
SCREW, HHCS, M12-1.75 X 70MM, G8.8
WASHER, FLAT, ZINC, 12MM ID X 26MM OD X 2MM TH
WASHER, NYLON, M12 X 22MM OD X 3MM TH
NUT, STEEL INSERT, ZINC, M12 X 2.0T
TIE ROD, M8 X 1.25T X 320MM L, LONG
TIE ROD, M8 X 1.25T X 143MM L, SHORT
BALL JOINT, M8-1.25, CAST, RIGHT
SCREW, HHCS, M8-1.25 X 15MM
WASHER,LOCK,ZINC,M8 X 15MM OD X 2MM TH
WASHER, FLAT, ZINC, M8 X 22MM OD X 2MM TH
SCREW, HHCS, M8-1.25 X 101MM
SPRING, ORANGE, 2.5"L X .975"OD X .5"ID X .207WIRE DIA
BUSHING, FLANGE, 25MM FOD X 9MM ID X 13MM BOD X 3MM FTH X 13MM L
WASHER, FLAT, ZINC, M8 X 17MM OD X 1MM TH
WASHER, DAMPER, 9MM ID X 21MM OD X 3MM TH
WASHER, BLACK, NYLON, 0.320"ID X 0.750"OD X 0.250"TH
STEM, FRONT, VICTORY XL
STEM, 1"EXTENSION, 9"L, FRONT
BALL JOINT, M8-1.25, CAST, LEFT
WASHER, FLAT, ZINC, M8 X 16MM X 1.0TH
NUT, NYLOCK, BLACK ZINC, M8-1.25
HEAD CUP, LOWER, CHROME, B-1020-035
RETAINER, BALL
HEAD CUP, UPPER, CHROME, B-1020-036
WASHER, LOCK, 1 ", FRONT FORK, B-1020-037
NUT, LOCK, 1"", BEARING/RACE
