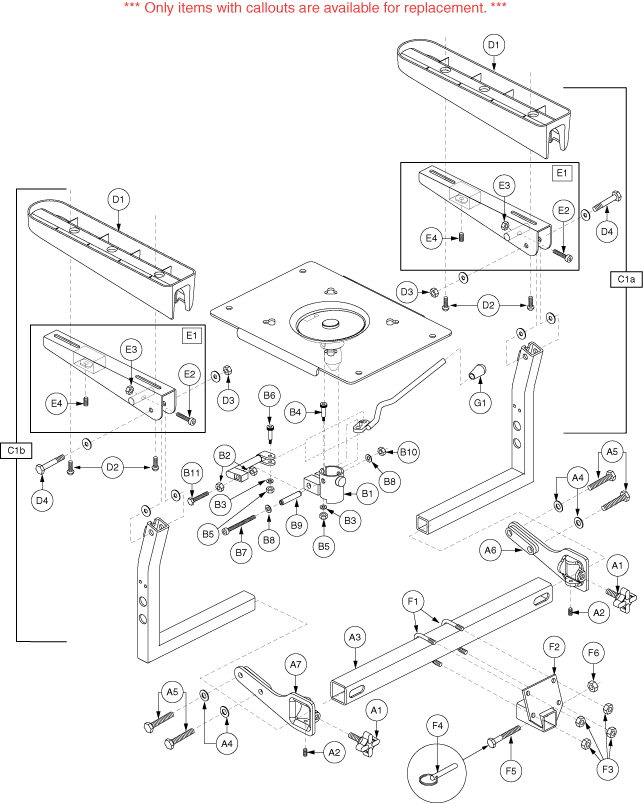

Pride Legend (SC3400) - Seat Frame - Pinchless Hinge - 20 Wide

Pride Mobility

ARMREST RECEIVER BAR,ASSY,115° LTD REC HINGE,21"W,JET (FRMASMB5816)

Monster Scooter Parts

Armrest Lock Knob for Pride, Go-Go, Jazzy, Jet, and Quantum Scooters and Power Chairs (DWR1000B152)

Pride Mobility

SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO (SCRSETS1013)

Monster Scooter Parts

21" Receiver Bar for the Jazzy 1113 (DWR1200C122G)

Pride Mobility

WASHER, FLAT, TYPE A, .312 N X .688 OD X .065 THK, ASTM F844, BZ (WASSTND1002)

Pride Mobility

SCREW, HEX HEAD, .3125-24 X 1.0, SAE J429, GR 5, BZ (SCRHHCS1207)

Pride Mobility

HINGE,HINGE CONNECTOR BRACKET WELDMENT,115° LTD REC,RIGHT,D-1010-213 (DWR1010D213)

Monster Scooter Parts

Left Side Seat Hinge Connector Bracket Weldment for Pinchless Seats on the Jazzy & Jet Power Chairs (DWR1010D214)

SEAT COLLAR CASTING, FRICTION LOCK

Pride Mobility

WASHER, FLAT, 0.281 ID X 0.50 OD X 0.047 TH, ASTM F844, ZN (WASSAE1005)

Pride Mobility

BOLT,SHOULDER,1/4" X 0.75" (BLTASHL1062)

Pride Mobility

NUT, HEX, LOCK, 10 (.190)-24, IFI-100/107, STL, BZ, PVTP (NUTNYLK1040)

BOLT, SHOULDER, 1/4"X 5/8"

SCREW, SHCS, BLACK ZINC, M5-.8 X 60MM, GRADE 10.9

Pride Mobility

WASHER, FLAT, 5.3 ID X 10 OD X 1.0 THK, ISO 7089-5-200HV, ZINC (USE WASSTND1142) (WASSTND1039)

SPRING PIN, 0.375" DIA X 2.00" L

Pride Mobility

NUT,NYLOCK,ZINC,M5-.8 (NUTNYLK1042)

SCREW, HHCS, ZINC, 5/16-18 X 2.00", GRADE 5

ARMREST, ASSY, FLIP-UP, W/COSMETIC COVER, FULL LENGTH, RIGHT

ARMREST, ASSY, FLIP-UP, W/COSMETIC COVER, FULL LENGTH, LEFT

Monster Scooter Parts

Full Length Armrest Cover for Pride Mobility Scooters and Power Chairs (DWG1200D560)

Pride Mobility

SCREW, BUTTON HEAD, .250-20 X 0.750, ASTM F835, BZ (SCRASBH1014)

Pride Mobility

NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1026)

SCREW, HHCS, ZINC, 5/16-18 X 1.75", GRADE 5

SCREW, SHCS, 5/16-18 X 1 3/4"

NUT, JAM, BLACK ZINC, 5/16-18

ARMREST, ASSY, BRACKET, FULL LENGTH, JAZZY, C-1200-187

SCREW, SET, ELMR, 3/8-24 X 3/8"

Pride Mobility

Accessory Mounting Bracket for Jazzy & Quantum Power Chairs with Pinchless Hinge Seating (FRMASMB1504)

Pride Mobility

BOLT,"U",BLACK ZINC,1/4-20 X 1.50" W X 2.04" H X 0.56" THREAD LENGTH,A-1000-013 (IND1013A000)

Monster Scooter Parts

Rear Mounting Bracket for the Quantum Q6 Edge (IND1237C000)

Pride Mobility

NUT, LOCK, .250-20, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1014)

Pride Mobility

CLEVIS PIN,ZINC PLATED,3/8" X 2" (PINCLEV1005)

Pride Mobility

SCREW, HEX HEAD, .375-24 X 1.75, PT, SAE J429, GR 5, BZ (SCRHHCS1072)

Pride Mobility

NUT, LOCK, .375-24, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1035)

Monster Scooter Parts

Freewheel Handle/Brake Release Cover for Jazzy 1170 XL (PROHDLC1003)
