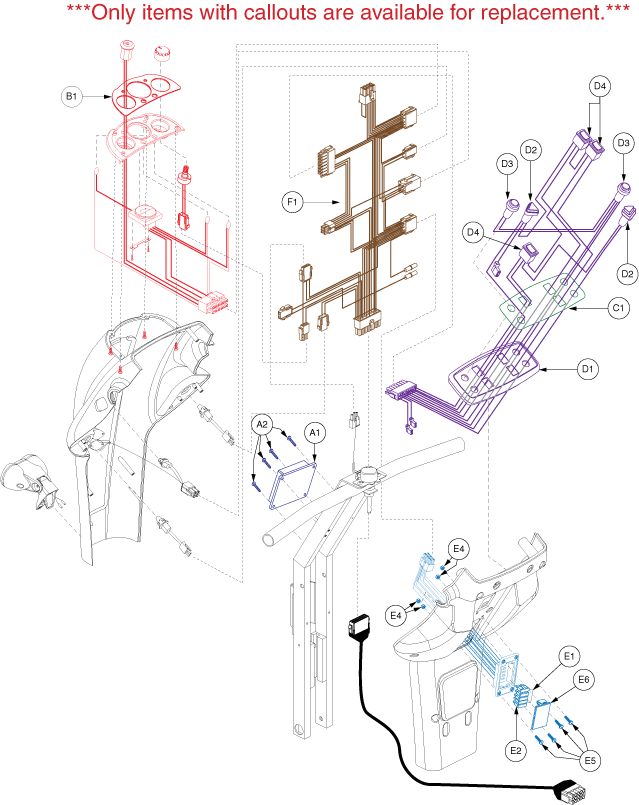

Pride Legend (SC3400) - Console - Electronics - S5511105001c30 - Subsequent


Pos.
MPN
Details
A1 - A2
ELEASMB4317

ELECTRONIC, ASSY, CONSOLE, VERSION 2, SC3000/3400

---
A1
CTLDC1392

ELECTRONIC, PCB, CONSOLE BOARD, VERSION 2, H-9660-045

---
A2
SCRPPH1018

SCREW, PPH, M3 X 12MM, THREAD CUTTING

---
B1
DWR9935L003

DECAL, OVERLAY, KEY SWITCH, VOLT METER, SPEED POT

---
C1 - D5
ELEASMB4320

ELECTRONIC, ASSY, CONSOLE, LOWER, W/CONSOLE OVERLAY, VERSION 2, SC3000/3400

---
C1
DWR9935L002

DECAL, CONSOLE PANEL OVERLAY, SC3000/3400, HORN, HEADLIGHT, HAZARD, TURN

---
D1
DWR9935D011

COVER, CONSOLE, SIGNALS, HORN, HEADLIGHT, HAZARD, TURN

---
D2
SWTPSHB1007

ELECTRONIC, SWITCH, TURN SIGNAL, SPST, MOMENTARY, GREEN, #R18-26B

---
D3
SWTPSHB1000

ELECTRONIC, SWITCH, HORN, SPST/MOM WITH NUT

---
D4
SWTROCK1006

ELECTRONIC, SWITCH, ROCKER, 11", 4 PIN AMP CONNECTOR, ON/OFF, JEC (JS-606)

---
E1
ELEFUSE1009

Monster Scooter Parts

3 Amp ATO Blade Fuse (ELEFUSE1009)

$1.50 $1.99
View details
E2
ELEFUSE1013
View details
E3
PLSTIE1001
View details
E4
NUTNYLK1055

NUT, NYLOCK, ZINC, M3-.5

---
E5
SCRPPH1144

SCREW, PPH, BLACK ZINC, M3-.5 X 12MM

---
E6
DWR9700B023

ELECTRONIC, FUSE BOX, DOOR, SNAP FIT, B-9700-023

---
F1
DWR9935H050

ELECTRONIC, HARNESS, TILLER OCTOPUS, VERSION 2, H-9935-050

---
