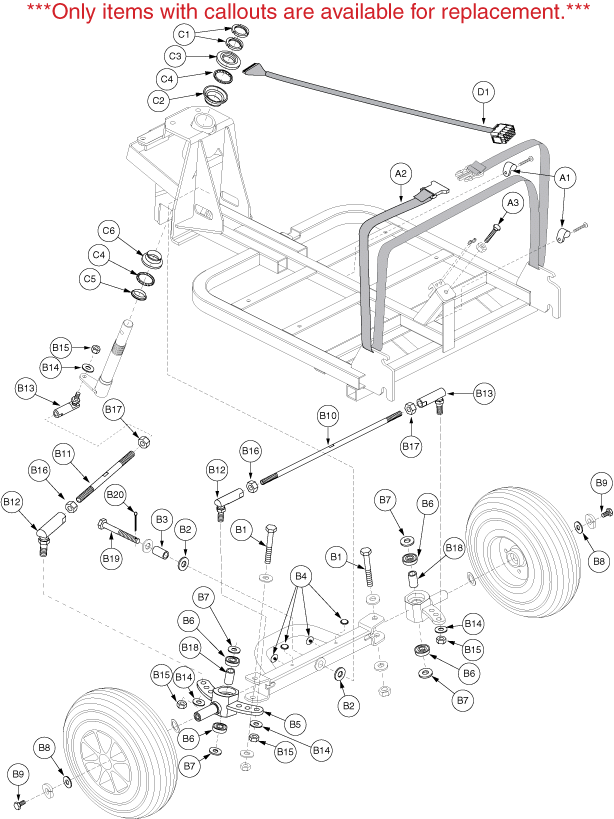

Pride Legend (SC3400) - Frame - Front


Pos.
MPN
Details
A1
CLPCBLC1018

Pride Mobility

CLAMP,CABLE,BLACK NYLON,5/16"D,P-CLIP (CLPCBLC1018)

$3.29
View details
A2
DWR9935B020

STRAP, 1" X 46", BATTERY, WITH CLIPS, B-9935-020

---
A3
SCRHHCS1127

SCREW, HHCS, ZINC, M8-1.25 X 25MM, GRADE 8.8

---
B1
SCRHHCS1337

SCREW, HHCS, BLACK ZINC, M12-1.75 X 69MM, GRADE 8.8

---
B2
DWR9940A006

SPACER, WHITE, NYLON, 16MM ID X 27MM OD X 1MM TH, FRONT AXLE, A-9940-006

---
B3
DWR9940A003

SPACER, ZINC, 12MM ID X 15MM OD X 40MM TH, FRONT AXLE

---
B4
DWR9940B010

BEARING, CAP, SC3400, B-9940-010

---
B5
DWR9940C007

FRAME, WELDMENT, SPINDLE, LEFT, SC3400, C-9940-007

---
B6
BRGBTRA1006

BEARING, BALL, 12MM ID X 28MM OD X 8MM THK, (6001Z)

---
B7
DWR9940A005

SPACER, WHITE, NYLON, 12MM ID X 22MM OD X 2.5MM TH, SPINDLE, A-9940-005

---
B8
WASSTND1122

WASHER, FLAT, BLACK ZINC, M8 X 22MM OD X 2MM THK

---
B9
SCRHHCS1288

SCREW, HHCS, BLACK ZINC, M8-1.25 X 25MM, GRADE 10.9

---
B10
DWR9940C004

TIE ROD, MAIN, LEGEND 4, SC3400, C-9940-004

---
B11
DWR9940B003

TIE ROD, SHORT, LEGEND 4, SC3400, B-9940-003

---
B12
INDPART2333

Monster Scooter Parts

Ball Joint for Go-Go and Pride Scooters

$32.99
View details
B13
INDPART2334

Monster Scooter Parts

Ball Joint for Go-Go and Pride Scooters

$32.99
View details
B14
WASSTND1123

WASHER, FLAT, BLACK ZINC, M8 X 16MM OD X 1.0MM THK

---
B15
NUTNYLK1011

Monster Scooter Parts

M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)

$0.18 $0.33
View details
B16
NUTSTD1043

Monster Scooter Parts

M8-1.25 Tie Rod Nut for 4-Wheel Go-Go & Pride Scooters

From $2.25 $2.99
View details
B17
NUTSTD1044

Monster Scooter Parts

M8-1.25 Tie Rod Nut for 4-Wheel Go-Go & Pride Scooters

From $2.25 $2.99
View details
B18
DWR9940A004

SPACER, ZINC, 12.4MM ID X 16MM OD X 19MM TH, SPINDLE

---
B19
DWR1005B163

SCREW, HHCS, BLACK ZINC, M12 X 1.75, W/COTTER PIN HOLE

---
B20
PINHAIR1002

PIN, COTTER, HAIRPIN, 18-8 STAINLESS, .073"D, 1-7/16"L

---
C1 - C6
HDWASMB1000

Monster Scooter Parts

Headset Steering Bearing Kit for Go-Go and Pride Mobility Scooters (HDWASMB1000)

$39.99
View details
C1
WASLOCK1021

WASHER, LOCK, 1 ", FRONT FORK, B-1020-037

---
C2
INDPART1820

HEAD CUP, UPPER, CHROME, B-1020-036

---
C3
INDPART1804

CONE HEAD, UPPER, CHROME, C-1020-029

---
C4
INDPART1821

RETAINER, BALL

---
C5
INDPART1803

CONE HEAD, LOWER, CHROME, B-1020-034

---
C6
INDPART1819

HEAD CUP, LOWER, CHROME, B-1020-035

---
D1
DWR9935H057

ELECTRONIC, HARNESS, FRONT-TO-REAR, VERSION 2, H-9935-057

---
