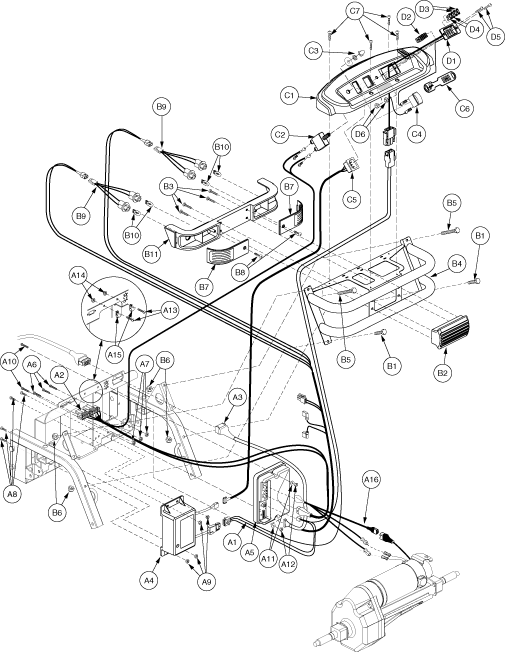

Pride Legend (SC3400) - Controller Pod - S5522507001c30 - S5502008001c30


Pos.
MPN
Details
A1 - A16
ELEASMB5847

ELECTRONIC, ASSY, REAR ELECTRONICS, ON-BOARD 110V CHARGER, VERSION 2, CURTIS POT, SC3000/SC3400

---
A1
DWR9935H059

ELECTRONIC, HARNESS, ON-BOARD CHARGER, VERSION 2, H-9935-059

---
A2
DWR9935H061

ELECTRONIC, HARNESS, BATTERY BREAKER, VERSION 2, H-9935-061

---
A3
DWR9935H058

ELECTRONIC, HARNESS, CONTROLLER INTERFACE, VERSION 2, H-9935-058

---
A4
ELECHG1019

CHARGER, 110V-240V, 4 AMP, 50/60HZ, LOW INHIBIT, POTTED, W/UNIVERAL HARNESS, H-1010-139, (BATTERY MAXIMIZER: A24040PIL)

---
A5
ELEASMB5230

CONTROLLER, P&G, EGIS, ASSY, 70AMP, 5.75 MPH, W/METAL CASTING, CURTIS POT, SC3000/3400

---
A6
SCRPPH1103
View details
A7
NUTSTD1019

NUT, STANDARD, M4-.7

---
A8
SCRPRH1012

SCREW, PRH, ZINC, M6 X 1.0T X 15MM

---
A9
NUTSTD1015

NUT, STANDARD, M6-1

---
A10
SCRPRH1016

SCREW, PRH, ZINC, M5 X .8T X 25MM

---
A11
WASSTND1091

WASHER, FLAT, M8

---
A12
NUTJAM1018

Pride Mobility

NUT, THIN JAM, M5X0.8, ISO 4035, CL 04, ZN (NUTJAM1018)

$3.29
View details
A13
SCRPPH1003

SCREW, PPH, 10-32 X 1/2", G2

---
A14
NUTNYLK1027

NUT, NYLOCK, 10-32

---
A15
CLPCBLC1008

CLAMP, CABLE, BLACK, 7/16"

---
A16
DWR9935H060

ELECTRONIC, HARNESS, MOTOR/BRAKE, VERSION 2, H-9935-060

---
B1 - B11
FRMASMB7934

BUMPER, ASSY, REAR, VERSION 2, SC3000/3400

---
B1
SCRHHCS1173

SCREW, HHCS, ZINC, M6 x 1 x 15MM

---
B2
PROBUMP1023

BUMPER, REAR, SC3000/3400, C-9935-066

---
B3
SCRHHCS1015

SCREW, HHCS, M6-1.0 X 20MM, G2

---
B4
DWR9935E010

BUMPER, WELDMENT, REAR, SC3000/3400, E-9935-010

---
B5
SCRHHCS1218

SCREW, HHCS, ZINC, M6-1.0 X 35 MM

---
B6
NUTNYLK1045

NUT, NYLOCK, ZINC, M6-1.0

---
B7
DWR9935D020

LENS, PLASTIC, REAR, SC3000/3400, D-9935-020

---
B8
SCRPPH1128

SCREW, PPH, BLACK, M3.5-.6 X 10MM

---
B9
DWR9935H063

ELECTRONIC, HARNESS, REAR LIGHTING, VERSION 2, H-9935-063

---
B10
LGTBULB1004

BULB, 24V, C5W

---
B11
DWR9935D021

BASE, LIGHT BAR, PLASTIC, REAR, DOMESTIC, SC3000/3400, D-9935-021

---
C1 - D6
ELEASMB4330

ELECTRONIC, ASSY, BREAKER MOUNT, FUSE BOX, ON-BOARD CHARGER, REAR, SC3000/SC3400

---
C1
DWR9935E022

COVER, PLASTIC, REAR PANEL, BREAKER, AMMETER, CHARGER, SC3000/3400, E-9935-022

---
C2
ELECBRK1007

Mechanical Products

40 Amp Circuit Breaker with Right Angle Screw Terminals

$49.49
View details
C3
INDPART2148

Monster Scooter Parts

Circuit Breaker Cover for the Pride Revo (SC64) (INDPART2148)

$6.59
View details
C4
ELEMETR1003

ELECTRONIC, AMMETER, 0-6

---
C5
HARUSHD2249

ELECTRONIC, HARNESS, CHARGER, UNIVERSAL ADAPTER

---
C6
DWR9935C032

COVER, CHARGER, RUBBER, SC3000/3400, C-9935-032

---
C7
SCRPPSM1019

SCREW, PPH, BLACK, M4 X 12MM, SHEET METAL

---
D1 - D6
ELEASMB4331

ELECTRONIC, ASSY, FUSE BOX, REAR, ON-BOARD CHARGER, VERSION 2, H-9935-068

---
D1
PLSINDV1158

ELECTRONIC, FUSE, HOLDER, REAR, SC3000/3400

---
D2
DWR1000A199

ELECTRONIC, FUSE, CLIP, PRESS FIT, ATO/SPADE TYPE FUSE, A-1000-199

---
D3
ELEFUSE1013
View details
D4
ELEFUSE1009

Monster Scooter Parts

3 Amp ATO Blade Fuse (ELEFUSE1009)

$1.50 $1.99
View details
D5
SCRPFH1046

SCREW, PFH, TYPE AB, BZ, M3.5 X .6T X 15MM

---
D6
NUTJAM1020

Pride Mobility

NUT, HEX, THIN, M3.5X0.6, ISO 4035, CL 04, ZINC (NUTJAM1020)

$3.29
View details
