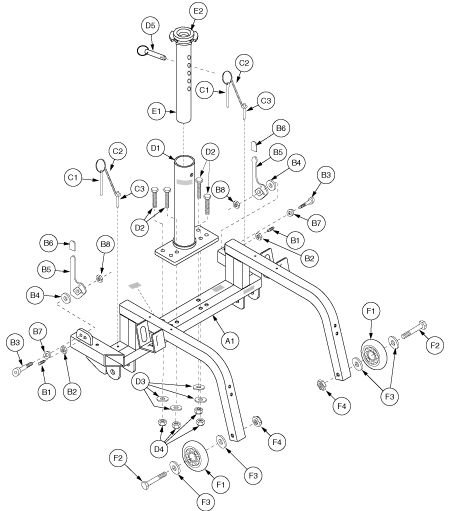

FRAME, ASSY, REAR, LEGEND 2000
FRAME, REAR WELDMENT, LEGEND 2000
FRAME, ASSY, TRAIL ARM, LEGEND 2000
MOTOR, ASSY, TRANSAXLE/MOTOR/BRAKE, ROCKWELL TRANSAXLE, SHORT SHAFT
FREEWHEEL, ASSY, RELEASE LEVER, ANGLED, LEGEND 2000
CAM LOCK UP, ASSY, LEGEND 2000
BALLPLUNGER+FILM, 5/16-18X37/64
NUT, JAM, 5/16-18
WASHER, NYLON, 1/4"ID, 3/4"OD, 1/16"T
CAM HANDLE, STYLE#9 W/ INSERT
COVER, HANDLE, CAM
WASHER, FENDER, 10 X 3/4"
NUT, NYLOCK, 10-24
DETENT RING, ASSY, 1/4" X 2", W/LANYARD
LANYARD, SS BALL CHAIN, #10X4.5"
RIVET, ALUM RIV/MAND, #44 1/8D X 1/4G
SEAT POST, ASSY, BOLT ON, SCOOTER
SEAT, WELDMENT, POST, BOLT-ON, SCOOTER, C-9600-021
SCREW, HHCS, ZINC, 5/16-18 X 2.00", GRADE 5
WASHER, FLAT, ZINC, 3/8"ID X 7/8"OD X 1/16"T
Monster Scooter Parts
3/8" x 3-3/8" Quick Release Seat Pin for Pride and Jazzy Rear Basket Assemblies
SEAT POST, ASSY, UPPER, 5 HOLE
SEAT POST, UPPER, FRAME, B-5100-009
SEAT POST, BUSHING, 1.000" ID X 1.310" OD X 2.112" TH X 2.00" FOD X 0.312"FTH, UPPER, A-5000-043
WHEEL, ASSY, ANTI-TIP, 3", SOLID COMPOSITE
Monster Scooter Parts
SCREW, HHCS, 5/16-18 X 2 3/4"
WASHER, FLAT, ZINC, 1/4, 0.3125" ID X0.75" OD X 0.0625" TH
