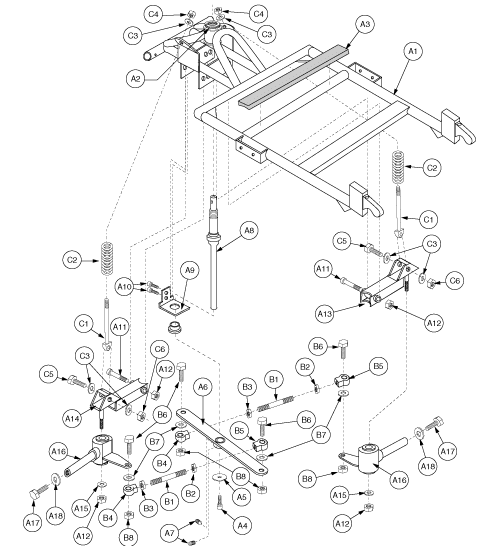

FRAME, ASSY, FRONT, SC340
FRAME, MAIN FRONT
Monster Scooter Parts
Headset Steering Bearing Kit for Go-Go and Pride Mobility Scooters (HDWASMB1000)
SEAT, 3/4"W X 1/2"THICK
SCREW, SHCS, ZINC, 10-32 X 0.750", GRADE 2
Pride Mobility
WASHER, FLAT,ZINC,1/4"ID X 1"OD X 1/16"T (WASSTND1010)
FRAME, ARM, CENTER STEERING
SCREW, SET, M6X6MM, 1.25T, G5, METRIC
AXLE, STEERING ROD, SC340
AXLE, STEERING ROD, GUIDE, SC340
SCREW, SHCS, BLACK ZINC, 1/4-20 X 0.500"
BOLT, SHOULDER, 3/8-16 X 2.50", GRADE 2
AXLE, WELDMENT, RIGHT
AXLE, WELDMENT, LEFT
FRAME, ASSY, AXLE, BLOCK, B-6000-018
SCREW, HHCS, 3/8-16 X 1.00", GRADE 2
WASHER, FLAT, ZINC, 3/8"ID X 7/8"OD X 1/16"T
ROD, 4W, WITH HARDWARE
AXLE, CONNECTING ROD
NUT, HEX, ZINC, 1/4-20
NUT, 1/4-20, LEFT HAND THREAD
TIE ROD END, 1/4-20, LEFT THREAD
TIE ROD END, 1/4"-28, THREADED, RIGHT HAND
SCREW, HHCS, 1/4-20 X 1.25", GRADE 2
WASHER, FLAT, ZINC, 0.25"ID X 0.75"OD X 0.0625"TH
NUT, NYLOCK, ZINC, 1/4-20
SPRING, ASSY, STRUT, NON-XL (4W)
FRAME, ASSY, STRUT, SPRING
SPRING, ORANGE, STRUT, NON-XL
WASHER, FLAT, ZINC, 7/16"ID X 7/8"OD X 1/16"T
SCREW, HHCS, 5/16-18 X 2", G2

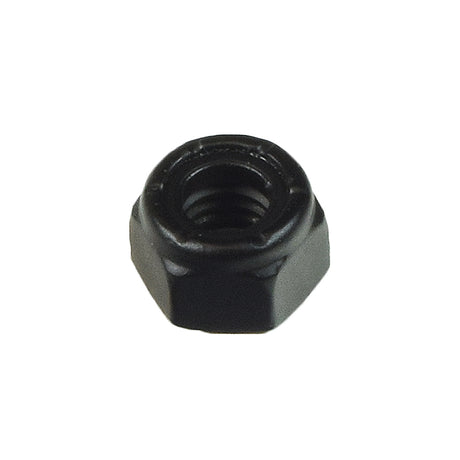

NUT, NYLOCK, BLACK OXIDE, 5/16-18
