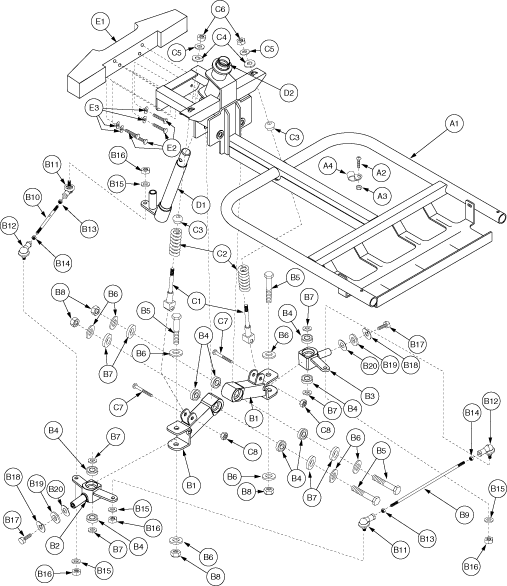

FRAME, ASSY, FRONT, 4 WHEEL, SUSPENSION, W/LOCKUP TUBES, LEG 2000
FRAME, WELDMENT, FRONT, WITH SPRING LOCK, E-9600-005
SCREW, PPH, ZINC, 1/4-20 X 0.750"
NUT, NYLOCK, ZINC, 1/4-20
CLAMP, CABLE, STEEL, 9/16" DIAM.
AXLE, ASSY, LEGEND 2000
AXLE, WELDMENT, FRONT, LEGEND 2000, C-9600-011
FRAME, WELDMENT, SPINDLE, LEFT, C-9600-006
FRAME, WELDMENT, SPINDLE, RIGHT, C-9600-008
BEARING, BALL, 12MM ID X 28MM OD X 8MM THK, (6001Z)
SCREW, HHCS, M12-1.75 X 70MM, G8.8
WASHER, FLAT, ZINC, 12MM ID X 26MM OD X 2MM TH
WASHER, NYLON, M12 X 22MM OD X 3MM TH
NUT, STEEL INSERT, ZINC, M12 X 2.0T
TIE ROD, M8 X 1.25T X 251MM, LONG, ZINC
TIE ROD, M8 X 1.25T X 115MM, SHORT, ZINC
WASHER, FLAT, ZINC, M8 X 16MM X 1.0TH
NUT, NYLOCK, BLACK ZINC, M8-1.25
WASHER,LOCK,ZINC,M8 X 15MM OD X 2MM TH
WASHER, FLAT, ZINC, M8 X 22MM OD X 2MM TH
SUSPENSION, ASSY, STRUT, 4.5 LENGTH, FRONT, LEGEND 2000
STRUT, FRONT, LEGEND 2000, B-9600-039
SPRING, RAW, 2.5" X .187"WIRE DIA, COMPRESSION
BALL PIVOT, SPRING ROD, A-1200-023
WASHER, FLAT, ZINC, 1/4, 0.3125" ID X0.75" OD X 0.0625" TH
Pride Mobility
WASHER,DAMPER,POLYURETHANE,0.330" ID X 0.90" OD X 0.130" TH,5/16",A-1010-012 (WASDAMP1000)
NUT, NYLOCK, 5/16-24
BOLT, SHOULDER, 3/8" X 1.00"
STEM, ASSY, FRONT, LEGEND 2000
WELDMENT, STEERING STEM, C-9600-012
Monster Scooter Parts
Headset Steering Bearing Kit for Go-Go and Pride Mobility Scooters (HDWASMB1000)
BUMPER, ASSY, FRONT, LEGEND 2000
BUMPER, FRONT, LEGEND 2000, MOLDED, E-9600-015
SCREW, HHCS, ZINC, 1/4-20 X 0.500", GRADE 5
WASHER, LOCK, ZINC, 1/4"
