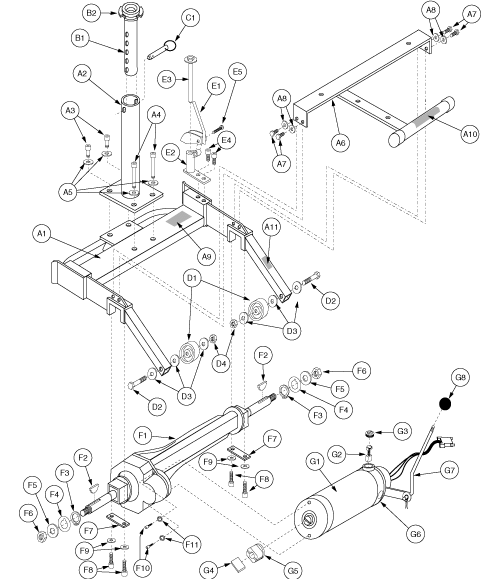

FRAME, ASSY, REAR, 3/4 WHEEL, (S.N. L-30999 & PRIOR)
FRAME, MAIN, REAR
SEAT POST, LOWER, FRAME
BOLT, SHOULDER, 8MM X 12MM
BOLT, SHOULDER, 8MM X 40MM, GRADE 5
FRAME, SUPPORT, ELECTRONICS
SCREW, HHCS, M6-1.0 X 12MM, G2
Pride Mobility
WASHER, REGULAR SPRING LOCK, .25 ID X .47 OD X .068 THK, ASME B18.21.1, STL, BZ (WASLOCK1000)
DECAL, STOP! DISCONNECT PLUG
DECAL, THIS IS NOT A HANDLE
DECAL, DO NOT REMOVE ANTI-TIP
SEAT POST, ASSY, UPPER, 5 HOLE
SEAT POST, UPPER, FRAME, B-5100-009
SEAT POST, BUSHING, 1.000" ID X 1.310" OD X 2.112" TH X 2.00" FOD X 0.312"FTH, UPPER, A-5000-043
Monster Scooter Parts
3/8" x 3-3/8" Quick Release Seat Pin for Pride and Jazzy Rear Basket Assemblies
WHEEL, ASSY, ANTI-TIP, 2"
WHEEL, ANTI-TIP, LEGEND/CELEBRITY
SCREW, HHCS, 1/4-20 X 2.25'', GRADE 2
WASHER, FLAT, ZINC, 1/4, 0.3125" ID X0.75" OD X 0.0625" TH
NUT, NYLOCK, ZINC, 1/4-20
CAM, ASSY
FRAME, LOCKUP, LEVER
FRAME, LOCKUP, BASE
CAM NUT/WASHER
SCREW, SHCS, 1/4-20 X 0.50", GRADE 2
Pride Mobility
SCREW, BUTTON HEAD, .250-20 X 1.25, ASTM F835, BZ (SCRASBH1005)
MOTOR, ASSY, DRIVE TRAIN, OLD STYLE LEG/CEL
TRANSAXLE, ASSY, COMPLETE
TRANSAXLE, LONG SHAFT
Monster Scooter Parts
Transaxle Woodruff Key for Pride and Go-Go Scooters (KEYSTL1003)
WASHER, ZINC, .750"ID X 1.25"OD X .030"THK, STAMPED W/KEYWAY
WASHER, FLAT, ZINC, 9/16"ID X 1"OD X 1/16"
Monster Scooter Parts
Transaxle Nut for Pride Celebrity X (SC400/SC4001/SC440/SC4401) & iRide Scooters (NUTNJAM1001)
TRANSAXLE PLATE
SCREW, SHCS, ZINC, 5/16-18 X 1.00"
WASHER, LOCK, 5/16"ID X 7/16"OD X 1/16"T
SCREW, SHCS, BLACK OXIDE, 1/4-20 X 1 1/4"
WASHER, SAE, 1/4"ID, INTERNAL TOOTH
MOTOR, ASSY, BRAKE, SHORT CORD
MOTOR, MOTOR W/SHORT CORD
MOTOR, BRUSH, RELIANCE
MOTOR, BRUSH, CAP, RELIANCE
KEY, MOTOR COUPLER, 3/8" X 41/64" X 3/64", (110636YM)
MOTOR COUPLER, NYLON, (229007)
TRANSAXLE, BRAKE, RELIANCE, MAGNATEK
FREEWHEEL, ROD
KNOB, 1" DIA, PLASTIC, BLACK, ROUND, FREEWHEEL
