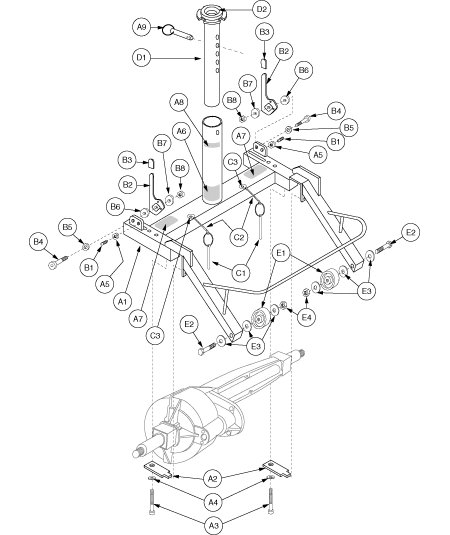

FRAME, ASSY, REAR, 3/4 WHL CELEBRITY
FRAME, REAR, 3 WHEEL LEGEND/CELEBRITY
TRANSAXLE, MOUNTING PLATE
SCREW, SHCS, BLACK OXIDE, 1/4-20" X 1-3/4"
WASHER, LOCK, ZINC, 1/4"ID X 1/2"OD X 1/16"TH
DECAL, SERIAL NUMBER, STD LEG
DECAL, WARNING-BOTH LOCK PINS
DECAL, PATENT PENDING, 3/8" X 2 1/4"L, L-1234-100
CLEVIS PIN, ZINC PLATED, 1/4" X 2 1/4"
HANDLE, ASSY, CAM, PAINTED
BALLPLUNGER+FILM, 5/16-18X37/64
CAM HANDLE, STYLE#9 W/ INSERT
COVER, HANDLE, CAM
WASHER, FLAT SAE, 1/4"ID 7/16"OD 1/16"T
WASHER, NYLON, 1/4"ID X 3/4"OD X 1/8"T
WASHER, FLAT, ZINC, 0.25"ID X 0.75"OD X 0.0625"TH
NUT, NYLOCK, 10-24
NUT, JAM, 5/16-18
LOCKING PIN, ASSY, FRAME RELEASE
LANYARD, SS BALL CHAIN, #10X4.5"
RIVET, ALUM RIV/MAND, #44 1/8D X 1/4G
SEAT POST, ASSY, UPPER, 5 HOLE
SEAT POST, UPPER, FRAME, B-5100-009
SEAT POST, BUSHING, 1.000" ID X 1.310" OD X 2.112" TH X 2.00" FOD X 0.312"FTH, UPPER, A-5000-043
WHEEL, ASSY, ANTI-TIP, 2"
WHEEL, ANTI-TIP, LEGEND/CELEBRITY
SCREW, HHCS, 1/4-20 X 2.25'', GRADE 2
WASHER, FLAT, ZINC, 1/4, 0.3125" ID X0.75" OD X 0.0625" TH
NUT, NYLOCK, ZINC, 1/4-20
