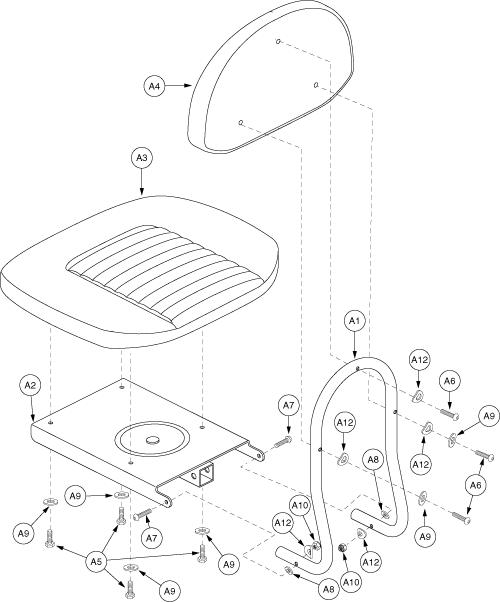

Pride Dart (SC51) - Frame Assemblies - Seat


Pos.
MPN
Details
A1 - A12
SETASMB4716

SEAT, ASSY, COMPACT SEAT, SELF-SKINNING FOAM, 17"W, 16"D, W/O CHARGER BAG

---
A1
DWR9955E020

SEAT FRAME, BACKREST TUBE, SC40, E-9955-020

---
A2
DWR9955E016

SEAT FRAME, PLATFORM, SC40, E-9955-016

---
A3
DWR9955E022

SEAT BASE, SELF-SKINNING FOAM, SC40, {E-9955-022}

---
A4
DWR9955E021

SEAT BACK, SELF-SKINNING FOAM, SC40, {E-9955-021}

---
A5
SCRHHCS1251

SCREW, HHCS, M6-1.0 X 12MM, G8.8

---
A6
SCRBHCS1000

SCREW, BHCS, BLACK ZINC, M6-1.0 X 32MM

---
A7
SCRASBH1072

SCREW, BHSCS, BLACK ZINC, M6-1.0 X 35MM, GRADE 8.8

---
A8
DWR9955A007

WASHER, NYLON, M6 ID X 19.1MM OD X 4.06MM THK, {A-9955-007}

---
A9
WASSTND1098

WASHER, FLAT, BLACK ZINC, M6 ID X 13MM OD X 1MM THK

---
A10
NUTNYLK1019

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

$0.99
View details
A11
INFASMB1019

HANG TAG, SEAT, REGULATIONS

---
A12
WASINDV1014

WASHER, SPECIAL, M6, FORMED RADIUS

---
