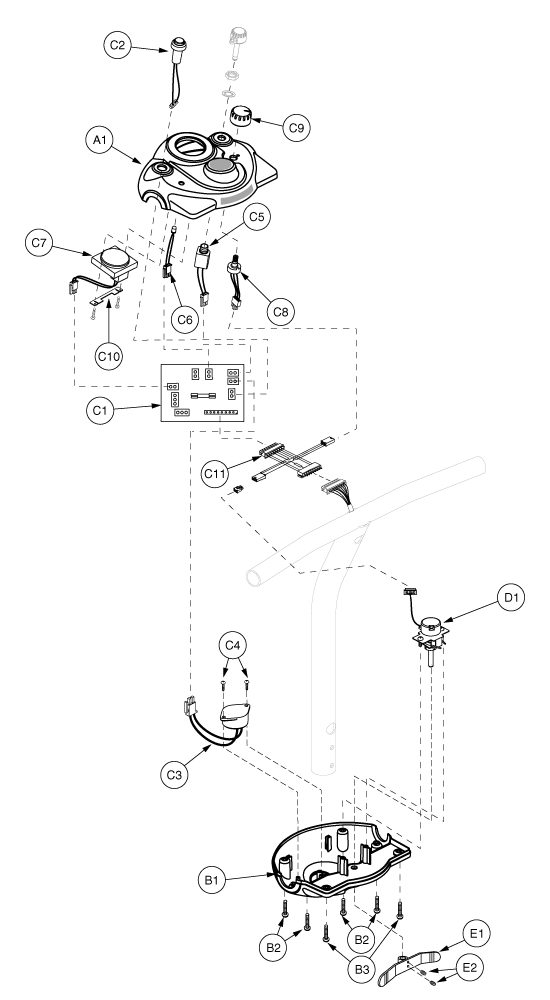

Pride Dart (SC51) - Console - Serial Number Ending In C30


Pos.
MPN
Details
A1
SHDASMB3274

SHROUD, ASSY, CONSOLE TOP, BLACK TEXTURED, SONIC

---
B1 - B3
SHDASMB3275

SHROUD, ASSY, CONSOLE BOTTOM, BLACK TEXTURED, SONIC

---
B1
SHDRAWM2165

SHROUD, REAR CONSOLE, RAW, SC50, SONIC

---
B2
SCRPPH1110

SCREW, PPH, BLACK ZINC, M3.5 X .35 X 13MM

---
B3
SCRPPH1021

Pride Mobility

SCREW,PPH,BLACK ZINC,M3-.5 X 10MM (SCRPPH1021)

$3.29
View details
C1 - C11
ELEASMB2867

ELECTRONIC, ASSY, CONSOLE, SC50, SONIC

---
C1
CTLDC1283

ELECTRONIC, PCB BOARD, H-9955-015

---
C2
HARUSHD2337

ELECTRONIC, HARNESS, MOMENTARY SWITCH, 6", 2 PIN, MOLEX CONNECTOR

---
C3
DWR9998H014

ELECTRONIC, HARNESS, HORN, REVO 2 PIN

---
C4
SCRPPH1096

SCREW, PPH, M2 X 5MM

---
C5
HARUSHD2328

ELECTRONIC, HARNESS, PHONO JACK, 6", 2 PIN, MOLEX CONNECTOR

---
C6
DWR9905H001

ELECTRONIC, HARNESS, STATUS LED, GREEN, SONIC

---
C7
HARUSHD2329

HARNESS, VOLT METER, 6", 2 PIN, MOLEX CONNECTOR

---
C8
DWR9905H009

ELECTRONIC, SPEED POT W/HARNESS, 100K, SPLIT SHAFT, KNURLED, SONIC

---
C9
DWR9905B029

KNOB, GRAY, PLASTIC, SPEED POT, B-9905-029

---
C10
DWR9905B035

ELECTRONIC, VOLTMETER, RETAINER, SONIC, SC50, B-9905-035

---
C11
DWR9905H020

ELECTRONIC, HARNESS, TILLER INTERMEDIATE, SC50/60, H-9905-020

---
D1
ELEASMB3784

ELECTRONIC, ASSY, THROTTLE POT, W/ISO RESISTOR

---
E1 - E2
FRMASMB2821

STANDARD PARTS, ASSY, LEVER, THROTTLE CONTROL

---
E1
DWR9998B017

WIG WAG, REVO, B-9998-017

---
E2
SCRSETS1007

SCREW, SET, M4-.7 X 6MM

---
