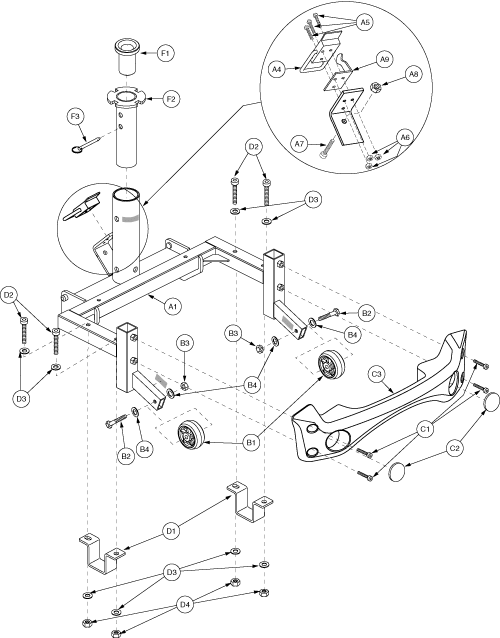

Pride Dart (SC51) - Frame Assemblies - Rear


Pos.
MPN
Details
A1 - E1
FRMASMB6965

FRAME, ASSY, REAR, SC51

---
A1
DWR9905E013

FRAME, WELDMENT, REAR, SONIC, E-9905-013

---
A2
DWR9930B016

FREEWHEEL, HANDLE, YELLOW, SUNDANCER 2001, B-9930-016

---
A3
SCRSETS1057

SCREW, SET, BLACK, M4-.7 X 12MM

---
A4
DWR9905B022

FRAME, MECHANISM, HOOK LOCK UP, SC50, SONIC, B-9905-022

---
A5
SCRPPH1113

SCREW, PPH, M4 X .7T X 13MM

---
A6
NUTNYLK1020

NUT, NYLOCK, ZINC, M4-.7

---
A7
SCRSHCS1065

SCREW, SHCS, BLACK ZINC, M8-1.25 X 25MM

---
A8
NUTNJAM1020

Monster Scooter Parts

M8-1.25x6.5 Black Lock Nut (NUTNJAM1020)

$2.99
View details
A9
DWR9905B034

LATCH, RETAINER, CATCH, SC50/3000, B-9905-034

---
B1 - B4
WHLASMB1435

WHEEL, ASSY, ANTI-TIP, SONIC

---
B1
WHLATIP1000

WHEEL, ANTI-TIP, LEGEND/CELEBRITY

---
B2
SCRHHCS1061

SCREW, HHCS, M6-1.0 X 45MM, G2

---
B3
NUTNYLK1045

NUT, NYLOCK, ZINC, M6-1.0

---
B4
WASMETR1026

WASHER, FLAT, 6MM ID X 13MM OD X 1MM TH

---
C1 - C3
FRMASMB3905

BUMPER, ASSY, REAR, SONIC

---
C1
SCRSHCS1015

Pride Mobility

M6-1.0 X 30 mm Black Zinc Machine Screw (SCRSHCS1015)

$0.79
View details
C2
REFRED1004

REFLECTOR, RED, 1", CCL

---
C3
DWR9905E005

BUMPER, MOLDED, REAR, SONIC, E-9905-005

---
D1 - D4
HDWASMB1026

Pride Mobility

TRANSAXLE,ASSY,HARDWARE,MOUNTING, SONIC (HDWASMB1026)

$58.29
View details
D1
DWR9998A005

BRACKET, AXLE MOUNT, BLACK, POWDER COAT, REVO, A-9998-005

---
D2
SCRSHCS1066

SCREW, SHCS, BLACK ZINC, M8-1.25X40MM

---
D3
WASSTND1091

WASHER, FLAT, M8

---
D4
NUTNYLK1011

Monster Scooter Parts

M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)

$0.18 $0.33
View details
E1
DRVASMB1637

MOTOR, ASSY, MOTOR/BRAKE/TRANSAXLE, WARNER, 4NM, CCL, (PM802-T06C)

---
F1 - F3
FRMASMB4082

SEAT POST, ASSY, UPPER, 2 HOLE, SC50

---
F1
DWR5000A043

SEAT POST, BUSHING, 1.000" ID X 1.310" OD X 2.112" TH X 2.00" FOD X 0.312"FTH, UPPER, A-5000-043

---
F2
DWR9905C010

SEAT POST, UPPER, WELDMENT, 2 HOLE, CHROME, SONIC, C-9905-010

---
F3
PINCOTD1006

Monster Scooter Parts

3/8" x 3-3/8" Quick Release Seat Pin for Pride and Jazzy Rear Basket Assemblies

$4.99
View details
