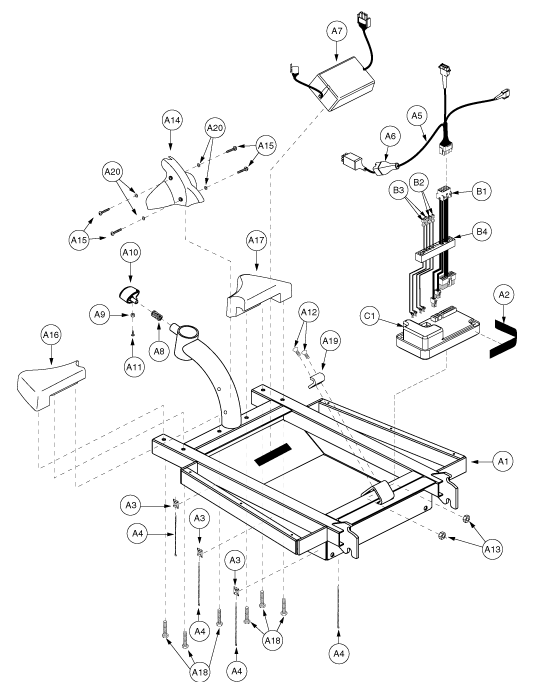

FRAME, ASSY, FRONT, SC51
FRAME, FRONT WELDMENT, SONIC
Pride Mobility
REUSABLE FASTENER,1/2"W X 8"L,HOOK & LOOP (VELDBLS1001)
TIE WRAP, BLACK, 3/4" X 3/4", CANAMOUNT, HOLDER
TIE WRAP, BLACK, 7"
ELECTRONIC, HARNESS, BATTERY BOX, FRONT-TO-REAR, SONIC
BOOT, RUBBER, FRONT-TO-REAR, BATTERY BOX SECTION, H-1020-002
CHARGER, LOW INHIBIT, UNIVERSAL, 110V, 2AMP, #2902-24
SPRING, 15.5MM FL X 0.90MM WIRE DIA X 10.80MM OD X RATE: 2.46N/MM, (LEE SPRING: LCM-090F-3), B-9983-044
BUSHING, BLACK, ZINC, 4MM ID X 6MM OD X 3.81MM TH, SONIC
KNOB, STEERING LOCK, C-9905-016
SCREW, PAN HEAD, TYPE H, M4X0.7 X 10, FT, ISO 7045, CL 4.8, BZ (USE SCRPPH1163)
SCREW, SHFH, BLACK, M6-1.0 X 10MM
GUARD, TOE, BLACK, PLASTIC, SONIC, E-9905-027
Pride Mobility
SCREW, PAN HEAD, TYPE H, M4X0.7 X 12, FT, ISO 7045, CL 4.8, BZ (SCRPPH1044)
BUMPER, FRONT, LEFT, BLACK, SELF SKINNING FOAM, SONIC, D-9905-020
BUMPER, FRONT, RIGHT, BLACK, SELF SKINNING FOAM, SONIC, D-9905-023
SCREW, HHCS, ZINC, M6 x 1 x 15MM
LATCH, BRACKET, CATCH, SC50, A-9905-008
WASHER, FLAT, ZINC, M4
CONTROLLER, ASSY, S-DRIVE, SC51
ELECTRONIC, HARNESS, CONTROLLER INTERFACE, S-DRIVE, SC51, H-9915-006
ELECTRONIC, HARNESS, BATTERY, S-DRIVE, SC51, H-9915-007
ELECTRONIC, HARNESS, MOTOR, S-DRIVE, SC51, H-9915-008
GROMMET, CONTROLLER, BLACK, RUBBER, M8 X 25MM, 8 HOLES, P&G, P76693, C-9955-021
CONTROLLER, ASSY, 45AMP, DART, 4 MPH, S-DRIVE
CONTROLLER, P&G, S-DRIVE, 45 AMP, W/METAL CASTING, H-1020-014
CONTROLLER, PROGRAM, 45 AMP, DART, 4 MPH, S-DRIVE, H-1020-015
DECAL, S-DRIVE, PROGRAM REVISION, ELEASMB4681, PROGRAM# DWR1020H015, L-1234-552
