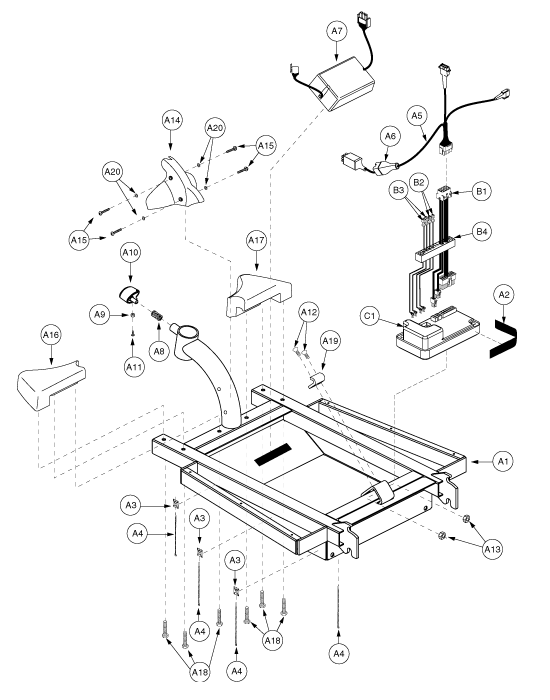

Pride Dart (SC51) - Frame Assemblies - Front


Pos.
MPN
Details
A1 - A20
FRMASMB6969

FRAME, ASSY, FRONT, SC51

---
A1
DWR9905E001

FRAME, FRONT WELDMENT, SONIC

---
A2
VELDBLS1001

Pride Mobility

REUSABLE FASTENER,1/2"W X 8"L,HOOK & LOOP (VELDBLS1001)

$3.29
View details
A3
PLSTIE1006

TIE WRAP, BLACK, 3/4" X 3/4", CANAMOUNT, HOLDER

---
A4
PLSTIE1003

TIE WRAP, BLACK, 7"

---
A5
DWR9905H002

ELECTRONIC, HARNESS, BATTERY BOX, FRONT-TO-REAR, SONIC

---
A6
DWR1020H002

BOOT, RUBBER, FRONT-TO-REAR, BATTERY BOX SECTION, H-1020-002

---
A7
ELE110V1038

CHARGER, LOW INHIBIT, UNIVERSAL, 110V, 2AMP, #2902-24

---
A8
SPGRAW1064

SPRING, 15.5MM FL X 0.90MM WIRE DIA X 10.80MM OD X RATE: 2.46N/MM, (LEE SPRING: LCM-090F-3), B-9983-044

---
A9
DWR9905A013

BUSHING, BLACK, ZINC, 4MM ID X 6MM OD X 3.81MM TH, SONIC

---
A10
DWR9905C016

KNOB, STEERING LOCK, C-9905-016

---
A11
SCRPPH1050

SCREW, PAN HEAD, TYPE H, M4X0.7 X 10, FT, ISO 7045, CL 4.8, BZ (USE SCRPPH1163)

---
A12
SCRSHFH1025

SCREW, SHFH, BLACK, M6-1.0 X 10MM

---
A13
NUTNYLK1019

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

$0.99
View details
A14
DWR9905E027

GUARD, TOE, BLACK, PLASTIC, SONIC, E-9905-027

---
A15
SCRPPH1044

Pride Mobility

SCREW, PAN HEAD, TYPE H, M4X0.7 X 12, FT, ISO 7045, CL 4.8, BZ (SCRPPH1044)

$3.29 $3.32
View details
A16
DWR9905D020

BUMPER, FRONT, LEFT, BLACK, SELF SKINNING FOAM, SONIC, D-9905-020

---
A17
DWR9905D023

BUMPER, FRONT, RIGHT, BLACK, SELF SKINNING FOAM, SONIC, D-9905-023

---
A18
SCRHHCS1173

SCREW, HHCS, ZINC, M6 x 1 x 15MM

---
A19
DWR9905A008

LATCH, BRACKET, CATCH, SC50, A-9905-008

---
A20
WASSTND1026

WASHER, FLAT, ZINC, M4

---
B1 - C3
ELEASMB3782

CONTROLLER, ASSY, S-DRIVE, SC51

---
B1
DWR9915H006

ELECTRONIC, HARNESS, CONTROLLER INTERFACE, S-DRIVE, SC51, H-9915-006

---
B2
DWR9915H007

ELECTRONIC, HARNESS, BATTERY, S-DRIVE, SC51, H-9915-007

---
B3
DWR9915H008

ELECTRONIC, HARNESS, MOTOR, S-DRIVE, SC51, H-9915-008

---
B4
GRMRUB1017

GROMMET, CONTROLLER, BLACK, RUBBER, M8 X 25MM, 8 HOLES, P&G, P76693, C-9955-021

---
C1 - C3
ELEASMB4681

CONTROLLER, ASSY, 45AMP, DART, 4 MPH, S-DRIVE

---
C1
CTLDC1445

CONTROLLER, P&G, S-DRIVE, 45 AMP, W/METAL CASTING, H-1020-014

---
C2
DWR1020H015

CONTROLLER, PROGRAM, 45 AMP, DART, 4 MPH, S-DRIVE, H-1020-015

---
C3
DWR1234L552

DECAL, S-DRIVE, PROGRAM REVISION, ELEASMB4681, PROGRAM# DWR1020H015, L-1234-552

---
