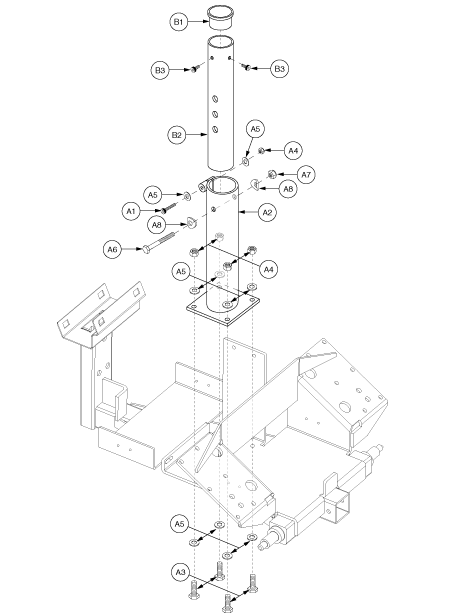

SEAT POST, ASSY, CLAMP STYLE, 8.48"LG LOWER / 8.25"LG UPPER
SCREW, SHCS, BLACK ZINC, M6-1.0 X 35MM, GRADE 8.8
SEAT POST, LOWER, WELDMENT, JAZZY1103-1, D-1103-007
Pride Mobility
SCREW, HEX HEAD, M6X1.0 X 25, IS0 4017, CL 10.9, BZ, PVTP (SCRHHCS1219)
Pride Mobility
WASHER, FLAT, 6.4 ID X 12 OD X 1.6 THK, ISO 7089-6-200 HV, BZ (USE WASSTND1097) (WASMETR1033)
SCREW, HHCS, ZINC, M10-1.5 X 60MM, GRADE 8.8
NUT, NYLOCK, ZINC, M10-1.5
Monster Scooter Parts
M10 Curved Disc Seat Post Washer (WASINDV1009)
FRAME, ASSY, UPPER SEAT POST, 8.48''LG, CLAMP STYLE, D-1103-010
BUSHING, BLACK, NYLON, A-1107-028
SEAT POST, UPPER, 8.25"LG, W/M6-1.0 HOLES, JAZZY1103-1
SCREW, SHCS, BLACK ZINC, M6-1.0 X 6MM, GRADE 8.8
