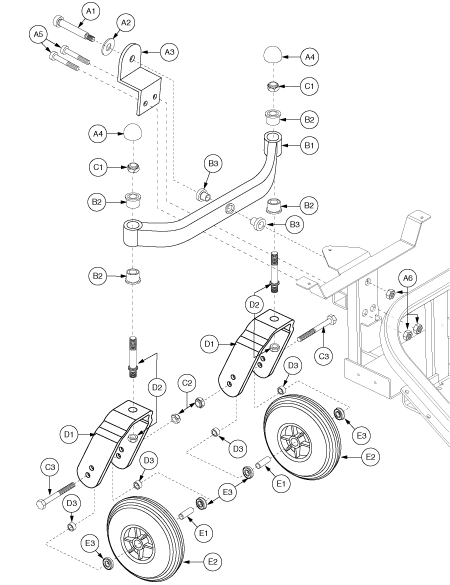

ARTICULATING BEAM, ASSY, CURVED, 17.625"LG, W/THREADED CAPS, FORK AND 8"WHEEL
ARTICULATING BEAM, ASSY, CURVED, 17.625"LG, W/THREADED CAPS
BOLT, SHOULDER, 1/2" X 3"
Pride Mobility
WASHER,ZINC,0.50" ID X 1.00" OD X 0.125" TH (WASINDV1000)
MOUNTING BRACKET, ARTICULATING BEAM OFFSET SUPPORT, B-1107-054
END CAP, BLACK, PLASTIC, 1/2/2020, THREADED
SCREW, SHCS, 3/8-16 X 1.75"
Monster Scooter Parts
Swing Arm Nut for the Jazzy 1170 XL Plus (NUTNYLK1006)
ARTICULATING BEAM, ASSY, 17.625"LG, W/ BEARINGS & BUSHINGS
ARTICULATING BEAM, WELDMENT, ANGLED BEAM
BEARING, FLANGE, BRONZE, 0.50"ID X 0.75"OD X 0.625"TH X 0.875"FOD X 0.125"F
BUSHING, FLANGE, BRONZE, 0.50" X 0.75" X 0.75", A-1010-013
FORK, ASSY, CASTER, 8"WHEEL, THICK WALL, JAZZY1100, RIGHT
FORK, ASSY, CASTER, 8"WHEEL, THICK WALL, JAZZY1100, LEFT
FORK, ASSY, CASTER, THICK WALL, JAZZY1100
Monster Scooter Parts
Articulating Rear Beam Assembly Nut for the Jet 3 and Jazzy Select 6 (NUTNJAM1018)
Pride Mobility
NUT, JAM, PVTP, .3125-24, STL, BZ (DWG 147337) (NUTNJAM1004)
SCREW, HHCS, BLACK ZINC, 5/16-24 X 3.50", GRADE 5
FORK, CASTER, THICK WALL, W/STEM, NUT, &SPACERS
FORK, CASTER, BLACK ALUMINUM, THICK WALL, JAZZY1100
STEM, STEEL, W/1/2-20 NYLOCK JAM NUT, A-1200-006
Pride Mobility
SPACER,STEEL,0.3125" ID X 0.4375" OD X 0.125" TH (SPCROLL1000)
Pride Mobility
8" x 2" (200x50) Caster Wheel Assembly for Jazzy Power Chairs (WHLASMB1112)
SPACER, BLACK ZINC, STEEL, .325" ID X .63" OD X 1.70" TH
WHEEL, CASTER, BLACK RIM/GRAY TIRE, E-1005-001
BEARING,BALL,8MM ID X 22MM OD X 7MM TH,W/ EXTENDED INNER RACE 9MM,(608ZZ-DOUBLE SHIELD)
