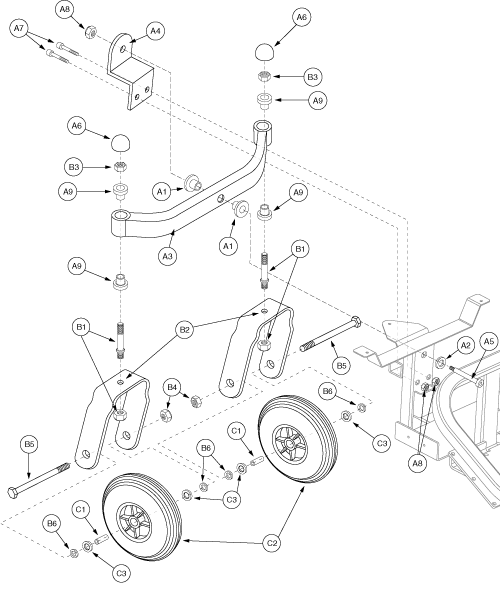

Jet 3 - Articulating Beam / Casters - Used From Sn J1707301045100 Through Sn J1707301045101


Pos.
MPN
Details
A1 - C3
FRMASMB2050

ARTICULATING BEAM, ASSY, CURVED, 17.625"LG, W/THREADED CAPS, FORK AND 8"WHEEL

---
A1 - A9
FRMASMB2051

ARTICULATING BEAM, ASSY, CURVED, 17.625"LG, W/THREADED CAPS

---
A1
BSHFLNG1003

BUSHING, FLANGE, BRONZE, 0.50" X 0.75" X 0.75", A-1010-013

---
A2
WASINDV1000

Pride Mobility

WASHER,ZINC,0.50" ID X 1.00" OD X 0.125" TH (WASINDV1000)

$3.29
View details
A3
DWR1107D029

ARTICULATING BEAM, WELDMENT, ANGLED BEAM

---
A4
DWR1107B054

MOUNTING BRACKET, ARTICULATING BEAM OFFSET SUPPORT, B-1107-054

---
A5
BLTASHL1025

BOLT, SHOULDER, 1/2" X 3.00"

---
A6
PROECAP1028

END CAP, BLACK, PLASTIC, 1/2/2020, THREADED

---
A7
SCRALNH1025

SCREW, SHCS, 3/8-16 X 1.75"

---
A8
NUTNYLK1006

Monster Scooter Parts

Swing Arm Nut for the Jazzy 1170 XL Plus (NUTNYLK1006)

$3.29
View details
A9
BRGFLNG1008

BEARING, FLANGE, BRONZE, 0.50"ID X 0.75"OD X 0.625"TH X 0.875"FOD X 0.125"F

---
B1 - C3
FRMASMB1849

FORK, ASSY, CASTER, 8"WHEEL, THICK WALL, JAZZY1100, RIGHT

---
B1 - C3
FRMASMB2133

FORK, ASSY, CASTER, 8"WHEEL, THICK WALL, JAZZY1100, LEFT

---
B1 - B6
FRMASMB1880

FORK, ASSY, CASTER, THICK WALL, JAZZY1100

---
B1
BRK1206A000

STEM, STEEL, W/1/2-20 NYLOCK JAM NUT, A-1200-006

---
B2
DWR1200C101

FORK, CASTER, BLACK ALUMINUM, THICK WALL, JAZZY1100

---
B3
NUTNJAM1001
View details
B4
NUTNJAM1004

Pride Mobility

NUT, JAM, PVTP, .3125-24, STL, BZ (DWG 147337) (NUTNJAM1004)

$3.29
View details
B5
SCRHHCS1154

SCREW, HHCS, BLACK ZINC, 5/16-24 X 3.50", GRADE 5

---
B6
SPCROLL1000

Pride Mobility

SPACER,STEEL,0.3125" ID X 0.4375" OD X 0.125" TH (SPCROLL1000)

$3.29
View details
C1 - C3
WHLASMB1112
View details
C1
IND1222A000

SPACER, BLACK ZINC, STEEL, .325" ID X .63" OD X 1.70" TH

---
C2
WHLCSTR1003

WHEEL, CASTER, BLACK RIM/GRAY TIRE, E-1005-001

---
C3
BRGSLV1017

BEARING,BALL,8MM ID X 22MM OD X 7MM TH,W/ EXTENDED INNER RACE 9MM,(608ZZ-DOUBLE SHIELD)

---
