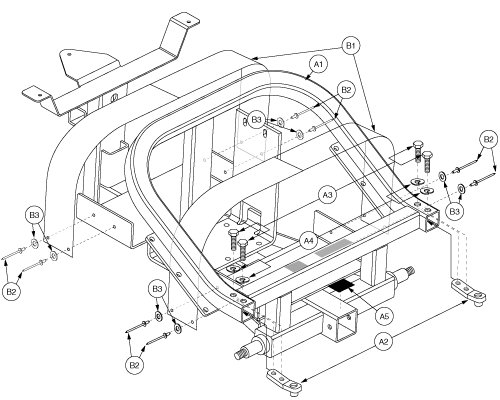

Jet 3 - Main Frame - Used Prior To Sn J1718402001s10


Pos.
MPN
Details
A1 - A5
FRMASMB3185

FRAME, ASSY, MAIN, JET3-1

---
A1
DWR1052E002

FRAME, FRAME WELDMENT, MAIN, JET3-1, E-1052-002

---
A2
DWR1052B005

SUSPENSION, SPRING BRACKET WELDMENT, B-1052-005

---
A3
SCRHHCS1190

SCREW, HHCS, ZINC, M8-1.25 X 20MM, GRADE 8.8

---
A4
WASLOCK1001

WASHER, LOCK, 5/16"ID X 7/16"OD X 1/16"T

---
A5
VELLOOP1000
B1 - B3
FRMASMB1978

STRAP, ASSY, BATTERY, JET1

---
B1
ACCSTRP1018

STRAP, BRASS LATCH, SHOULDER PAD

---
B2
RIVALUM1010

RIVET, 5/32" REGULAR FLANGE DOMED HEAD (.290 BODY LENGTH)

---
B3
WASSTND1059

WASHER, FLAT, 4MM ID X 8MM OD X 2MM TH

---
