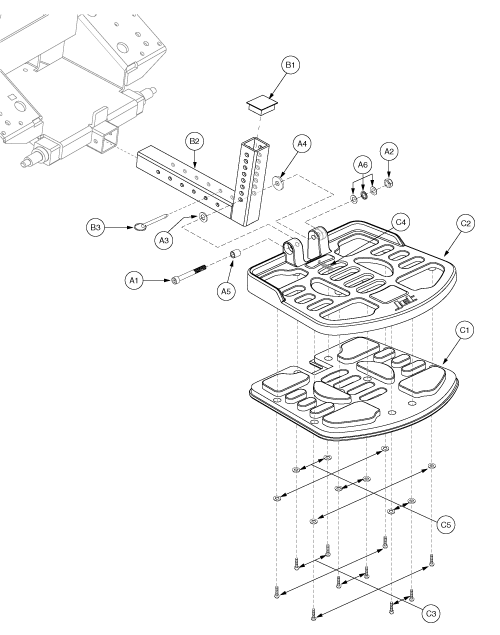

Jet 3 - Footrest Platform


Pos.
MPN
Details
A1 - C5
FRMASMB3182

FOOT PLATFORM, ASSY, JET STYLE, 10.50"D, W/MOUNTING BRACKET, JET3-1

---
A1
SCRSHCS1101

SCREW, SHCS, BLACK ZINC, M8-1.25 X 75MM, GRADE 10.9

---
A2
NUTNJAM1020

Monster Scooter Parts

M8-1.25x6.5 Black Lock Nut (NUTNJAM1020)

$2.99
View details
A3
WASMETR1023

WASHER, FLAT, BLACK ZINC, 8MM ID X 16MM OD X 1.55MM TH, METRIC

---
A4
WASNYLN1066

Monster Scooter Parts

Footrest Platform Black Washer for the Jazzy 600 (WASNYLN1066)

$1.11 $1.47
View details
A5
DWR1010A003

SPACER, BLACK ZINC, STEEL, 0.328"ID X 0.500"OD X 0.570"TH, A-1010-003

---
A6
BRGSBTH1000

BEARING, BALL THRUST, STAINLESS STEEL, 0.3125" ID X 0.625" OD X 0.193" TH, (MCMASTER-CARR: 6655K34)

---
B1 - B3
FRMASMB3186

MOUNTING BRACKET, ASSY, FOOT PLATFORM, JET 3-1

---
B1
PROECAP1011

END CAP, PLASTIC, 1.25" SQUARE, FITS 11 GAUGE TUBE

---
B2
DWR1052D006

FOOT PLATFORM MOUNTING WELDMENT, L BRACKET, D-1052-006

---
B3
PINCOTD1012

COTTERLESS DETENT PIN, 8MM DIA X 38MM GRIP LENGTH, W/RING

---
C1 - C5
FRMASMB3187

FOOT PLATFORM BASE, ASSY, JET STYLE, 10.50"D, W/RUBBER MAT & HARDWARE, E-1052-006

---
C1
DWR1052E005

MAT, JET STYLE, NATURAL RUBBER

---
C2
DWR1052E008

FOOT PLATFORM BASE, ALUMINUM, JET, E-1052-008

---
C3
SCRPPH1129

Pride Mobility

SCREW, PPH,BLACK,M4-.7 X 12MM (SCRPPH1129)

$3.29
View details
C4
SCRSETS1092

SCREW, SET, BLACK ZINC, 3/8-24 X 1.25", CUP POINT

---
C5
WASSAE1011

WASHER, FLAT SAE, BLACK ZINC, 4.3MM ID, 9MM OD, 0.8MM TH

---
