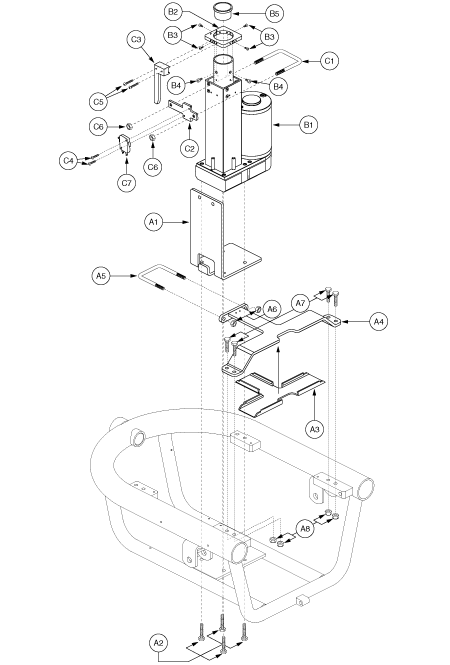

Jazzy 1143 Ultra - Towers / Mounts / Actuator - Actuator


Pos.
MPN
Details
A1 - D1
FRMASMB7834

ACTUATOR, ASSY, POWER SEAT, 5" STROKE, W/UNIVERSAL FRICTION LOCK PLATE, JAZZYULTRA

---
A1 - C7
FRMASMB6369

Monster Scooter Parts

Lift Actuator Assembly for the Jazzy 1103 Ultra (FRMASMB6369)

$582.99
View details
A1
DWR1054B019

CHARGER MOUNT BRACKET, B-1054-019

---
A2
SCRHHCS1303

SCREW, HHCS, BLACK, ZINC, M6-1.0 X 45MM, GRADE 12.9

---
A3
DWR1054D022

Pride Mobility

COVER,POWER SEAT SPAN,D-1054-022 (DWR1054D022)

$3.29
View details
A4
DWR1054D020

STABILIZER, POWER SEAT ACTUATOR, D-1054-020

---
A7
SCRHHCS1287

SCREW, HHCS, BLACK ZINC, M8-1.25 X 35MM, GRADE 10.9

---
A8
NUTNYLK1011

Monster Scooter Parts

M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)

$0.18 $0.33
View details
B1 - B5
FRMASMB6364

Monster Scooter Parts

Power Seat Actuator Assembly with 5" Stroke for the Jazzy 1103 Ultra (FRMASMB6364)

$313.49
View details
B1
DWR1010E285

ACTUATOR, POWER SEAT, 5" STROKE, E-1010-285

---
B2
DWR1010B047

ACTUATOR INHIBIT MOUNTING BLOCK, B-1010-047

---
B3
SCRSHCS1130

Pride Mobility

SCREW, SHCS,BLACK,ZINC,4-40 X 0.25'' (SCRSHCS1130)

$3.29
View details
B4
SCRALNH1031

Pride Mobility

SCREW,SHCS,1/4-20 X 0.25" (SCRALNH1031)

$3.29
View details
B5
DWR1107A028

BUSHING, BLACK, NYLON, A-1107-028

---
C1 - C7
ELEASMB3888

Pride Mobility

ELECTRONIC,ASSY,POWER SEAT INHIBIT SWITCH,W/MOUNTING BRACKET (ELEASMB3888)

$64.89 $66.95
View details
C1
DWR1054B037

U-BOLT, M6-1.0, B-1054-037

---
C2
DWR1054C035
C3
DWR1054C036
View details
C4
SCRPPH1301

SCREW, PPH, BLACK, 4-40 X 0.50", GRADE 2

---
C5
SCRPPH1302

Monster Scooter Parts

4-40x3/4" Pan Head Machine Screw (SCRPPH1302)

$2.19
View details
C6
NUTNYLK1019

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

$0.99
View details
C7
SWTMCRO1031

ELECTRONIC, SWITCH, MICRO, SPDT, ROLLER, X3C306K2LBT02

---
D1
FRMASMB4976

FRAME, ASSY, UNIVERSAL FRICTION LOCK SEAT, E-1000-153

---
