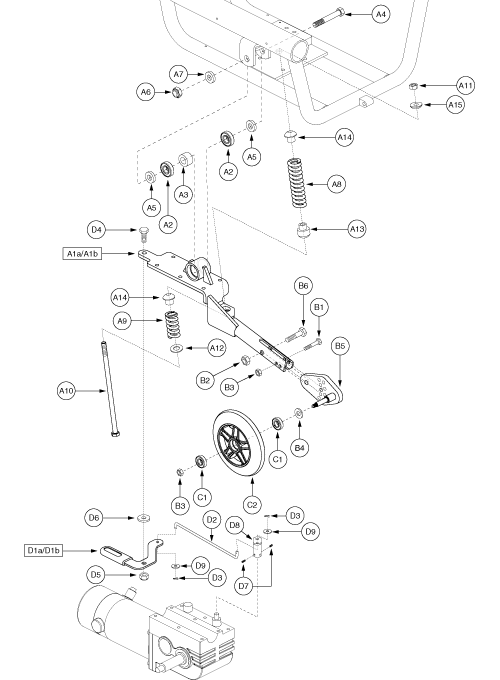

Jazzy 1143 Ultra - Anti -Tip / Freewheel Release


Pos.
MPN
Details
A1a - D9
FRMASMB7803

ANTI-TIP, ASSY, ATS, 127MM WHEEL, JAZZY1143ULTRA, RIGHT

---
A1b - D9
FRMASMB7802

ANTI-TIP, ASSY, ATS, 127MM WHEEL, JAZZY1143ULTRA, LEFT

---
A1a
DWR1143E004

ACTIVE TRAC/MOTOR MOUNT BRACKET WELDMENT, RIGHT, E-1143-004

---
A1b
DWR1143E003

ACTIVE TRAC/MOTOR MOUNT BRACKET WELDMENT, LEFT, E-1143-003

---
A2
DWR1101A019

Pride Mobility

BEARING, BALL, 12 ID X 28 OD X 8 THK, DOUBLE SHIELD (6001-2Z) (DWR1101A019)

$8.79 $8.97
View details
A3
DWR1054A003

SPACER, STEEL, 13MM ID X 23MM OD X 13.62MM TH, A-1054-003

---
A4
SCRHHCS1390

SCREW, HHCS, BLACK ZINC, M12-1.25 X 60MM, GRADE 12.9, C-1005-017

---
A5
DWR1005B045

SPACER, STEEL, BLACK, 12.40MM ID X 22.00MM OD X 2.34MM TH, B-1005-045

---
A6
NUTNJAM1039

NUT, NYLOCK JAM, BLACK ZINC, M12-1.25, GRADE 8

---
A7
WASMETR1050
View details
A8
DWR1143B005

SPRING, BLACK, 3.00" FL X 0.975" OD X 0.207" WIRE DIA X RATE: 700 LBS/IN, B-1143-005, (LEE SPRING:LHL-1000D-4)

---
A9
DWR1054B022

SPRING, CHROME SILICON, 1.75"L X 0.890"OD X 0.177" WIRE DIA: 800LBS/IN, BLACK, B-1054-022, (LEE SPRING: LHL 1000C-4)

---
A10
SCRHHCS1378

SCREW, HHCS, BLACK ZINC, M8-1.25 X 165MM, (28MM THREAD LENGTH), GRADE 10.9

---
A12
WASMETR1049
View details
A13
DWR1143B006

BALL PIVOT, SPRING ROD, B-1143-006

---
A14
DWG1200A230

BALL PIVOT, SPRING ROD, A-1200-023

---
A15
DWR1054A004

ACTIVE TRAC PIVOT DOME, BLACK ZINC, 8.43MM ID X 22.15MM OD X 7MM TH, A-1054-004

---
B1 - B6
FRMASMB6144

ANTI-TIP, ASSY, HEIGHT ADJUSTABLE FORK

---
B1
SCRHHCS1236

SCREW, HHCS, BLACK ZINC, M6-1.0 X 35MM, GRADE 10.9

---
B3
NUTNYLK1019

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

$0.99
View details
B5
DWR1054C018

ANTI-TIP, ADJUSTMENT BRACKET WELDMENT, C-1054-018

---
B6
SCRHHCS1287

SCREW, HHCS, BLACK ZINC, M8-1.25 X 35MM, GRADE 10.9

---
C1 - C2
WHLASMB1284

Monster Scooter Parts

6" Front Anti-Tip Wheel Assembly for Jazzy, Jet, and Quantum Power Chairs

$29.99
View details
C1
BRGSLV1002

Pride Mobility

BEARING,BALL,8MM ID X 22MM OD X 7MM TH,608ZZ (BRGSLV1002)

$5.49
View details
C2
WHLATIP1001

WHEEL, ANTI-TIP, 6", MOLDED

---
D1a - D9
FRMASMB6145

FREEWHEEL, ASSY, RELEASE, JET3 ULTRA, RIGHT

---
D1a - D9
FRMASMB6148

FREEWHEEL, ASSY, RELEASE, JET3 ULTRA, LEFT

---
D1a
DWR1054C014

COVER, FREEWHEEL RELEASE LEVER W/MOLDED COVER, RIGHT, C-1054-014

---
D1b
DWR1054C009

FREEWHEEL, RELEASE LEVER, W/MOLDED COVER, LEFT, C-1054-009

---
D2
DWR1054C005

FREEWHEEL, RELEASE ROD, C-1054-005

---
D3
PINSOTR1000

Monster Scooter Parts

Freewheel Assembly Pin for the Jazzy 1121 (PINSOTR1000)

$3.29
View details
D4
SCRHHCS1288

SCREW, HHCS, BLACK ZINC, M8-1.25 X 25MM, GRADE 10.9

---
D5
NUTNYLK1011

Monster Scooter Parts

M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)

$0.18 $0.33
View details
D6
WASNYLN1066

Monster Scooter Parts

Footrest Platform Black Washer for the Jazzy 600 (WASNYLN1066)

$1.11 $1.47
View details
D7
SCRSETS1023

Pride Mobility

SCREW,SET,M6-1.0 X 8MM,CUP POINT (SCRSETS1023)

$2.47 $3.29
View details
D8
DWR1054B034

FREEWHEEL, MOTOR RELEASE LEVER WELDMENT, B1054-034

---
D9
WASSTND1066

WASHER, FLAT, ZINC, M4 X 10MM OD X .7MM TH

---
