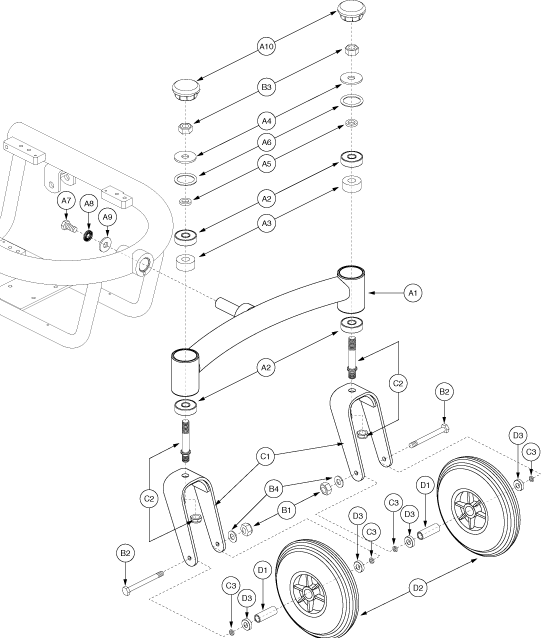

Jazzy 1143 Ultra - Articulating Beam / Casters


Pos.
MPN
Details
A1 - D3
FRMASMB7804

ARTICULATING BEAM, ASSY, CURVED, W/CASTER WHEELS, JAZZY1143ULTRA

---
A1 - A10
FRMASMB6150

ARTICULATING BEAM, ASSY, CURVED, JET/JAZZYULTRA

---
A1
DWR1054E001

ARTICULATING BEAM, WELDMENT, 16.90''L, CURVED, E-1054-001

---
A2
DWR1133A004

BEARING, BALL, 12.7MM ID X 40MM OD X 12MM TH, ABEC 3, (PEER: 6203-8-2RS), A-1133-004

---
A3
DWR1054A007

SPACER, STEEL, 14.50MM ID X 34MM OD X 15.50MM TH, A-1054-007

---
A4
DWR1133A005

WASHER, BLACK, STEEL, 13MM ID X 40MM OD X 3MM TH, A-1133-005

---
A5
DWR1054A006

SHIM, STEEL, 13MM ID X 21MM OD X 4MM TH, A-1054-006

---
A6
DWR1133A007

O-RING, NEOPRENE, 1.250" ID X 1.625" OD X 0.187" TH, (MCMASTER CARR: 94115K515-322), A-1133-007

---
A7
SCRHHCS1290

Pride Mobility

SCREW, HEX HEAD, M10X1.5 X 20, ISO 4014, CL 12.9, BZ (SCRHHCS1290)

$3.29
View details
A8
WASSTND1104
View details
A9
WASMETR1052
View details
A10
DWR1054C008

Monster Scooter Parts

Rear Caster Cap for Jazzy 600 XL & Jet 3 Ultra (DWR1054C008)

$4.39
View details
B1 - D3
FRMASMB7806

CASTER, ASSY, TEXTURED, W/8''WHEEL, THICK WALL, RIGHT, JAZZY1143ULTRA

---
B1 - D3
FRMASMB7805

CASTER, ASSY, TEXTURED, W/8''WHEEL, THICK WALL, LEFT, JAZZY1143ULTRA

---
B1
NUTNJAM1020

Monster Scooter Parts

M8-1.25x6.5 Black Lock Nut (NUTNJAM1020)

$2.99
View details
B2
SCRHHCS1121

SCREW, HHCS, BLACK ZINC, M8-1.25 X 90MM

---
B3
NUTNYLK1068

Pride Mobility

NUT,NYLOCK,ZINC,1/2-20 (NUTNYLK1068)

$3.29
View details
B4
WASSTND1074
View details
C1 - C3
FRMASMB7807

CASTER, ASSY, FORK, TEXTURED, THICK WALL, METRIC W/STEM, NUT, & SPACERS, JAZZY1143ULTRA

---
C1
DWR1143D005

FORK, CASTER WELDMENT, D-1143-005

---
C2
BRK1206A000

STEM, STEEL, W/1/2-20 NYLOCK JAM NUT, A-1200-006

---
C3
SPCROLL1000

Pride Mobility

SPACER,STEEL,0.3125" ID X 0.4375" OD X 0.125" TH (SPCROLL1000)

$3.29
View details
D1 - D3
WHLASMB1112
View details
D1
IND1222A000

SPACER, BLACK ZINC, STEEL, .325" ID X .63" OD X 1.70" TH

---
D2
WHLCSTR1003

WHEEL, CASTER, BLACK RIM/GRAY TIRE, E-1005-001

---
D3
BRGSLV1017

BEARING,BALL,8MM ID X 22MM OD X 7MM TH,W/ EXTENDED INNER RACE 9MM,(608ZZ-DOUBLE SHIELD)

---
