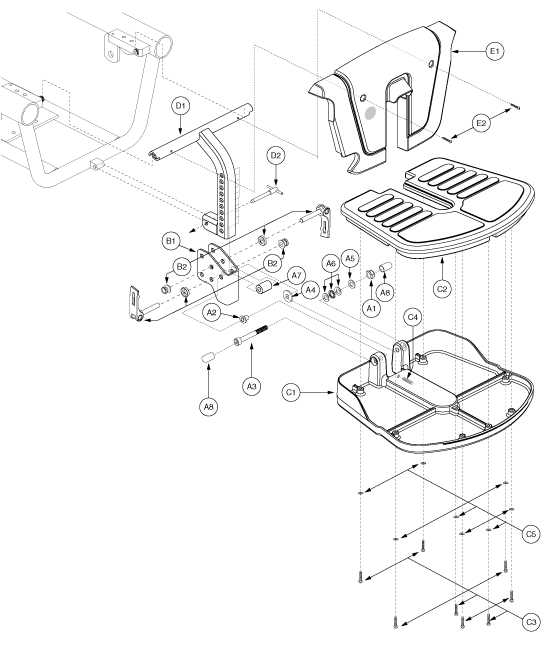

Jazzy 1143 Ultra - Footrest Platform - 11.62


Pos.
MPN
Details
A1 - C5
FRMASMB6370

FOOT PLATFORM, ASSY, 11.62"D, GRID STYLE, TEXTURED, W/MOUNTING BRACKET, JAZZYULTRA

---
A1
NUTNJAM1020

Monster Scooter Parts

M8-1.25x6.5 Black Lock Nut (NUTNJAM1020)

$2.99
View details
A2
DWR1000B458

FOOT PLATFORM MOUNTING SLEEVE, FLANGE, STEEL, B-1000-458

---
A3
SCRSHCS1170

Pride Mobility

SCREW, SOCKET HEAD, M8X1.25 X 80, ISO 4762, CL 12.9, BZ (SCRSHCS1170)

$2.47 $3.29
View details
A4
WASNYLN1066

Monster Scooter Parts

Footrest Platform Black Washer for the Jazzy 600 (WASNYLN1066)

$1.11 $1.47
View details
A5
DWR1000B459

SPACER, STEEL, 0.328" ID X 0.50" OD X 0.076" TH, B-1000-459

---
A6
BRGSBTH1000

BEARING, BALL THRUST, STAINLESS STEEL, 0.3125" ID X 0.625" OD X 0.193" TH, (MCMASTER-CARR: 6655K34)

---
A7
DWR1010B090

SPACER, STEEL, 0.328" ID X 0.50" OD X 1.00" TH, B-1010-090

---
A8
PROECAP1080

CAP, VINYL, 0.50" ID, FITS 0.50" - 0.5625" OD, 0.50" H, (MCMASTER CARR: 9753K44)

---
B1 - B2
FRMASMB6635

FOOT PLATFORM MOUNTING BRACKET, ASSY, JAZZYULTRA/610, D-1054-053

---
B1
DWR1054C004

FOOT PLATFORM MOUNTING BRACKET, C-1054-004

---
B2
DWR1054B025

LEVER, B-1054-025

---
C1 - C5
FRMASMB6371

FOOT PLATFORM BASE, ASSY, 11.62"D, GRID STYLE, TEXTURED, W/RUBBER MAT & HARDWARE, E-1000-105

---
C1
DWR1000E104B

FOOT PLATFORM BASE, BLACK, ALUMINUM, 11.62"D, GRID STYLE, TEXTURED, E-1000-104

---
C2
DWR1000E103

MAT, FOOT PLATFORM, 11.62"D, GRID STYLE, E-1000-103

---
C3
SCRPPH1080

Monster Scooter Parts

8-32x75" Black Pan Head Machine Screw (SCRPPH1080)

$0.42 $0.79
View details
C4
SCRSETS1006

SCREW, SET, ELMR, 3/8-24 X 1 1/2"

---
C5
WASSAE1008
View details
D1 - E2
FRMASMB6486

FRAME, ASSY, FOOT PLATFORM UPRIGHT TUBE W/FRONT SHROUD, JAZZYULTRA

---
D1
DWR1054D010

FOOT PLATFORM UPRIGHT TUBE WELDMENT, D-1054-010

---
D2
PINCLEV1031

QUICK RELEASE PIN, 6MM DIA X 38.1MM GRIP LENGTH, W/"T" HANDLE, B-1101-014

---
E1 - E2
SHDASMB3984

SHROUD, ASSY, FOOTREST, BLACK, JAZZYULTRA

---
E1
DWR1054E015

SHROUD, FRONT DOOR, BLACK, E-1054-015

---
E2
SCRPPH1163

Monster Scooter Parts

M4-.7x10 mm Black Pan Head Machine Screw (SCRPPH1163/SCRPPH1050)

$1.69 $1.99
View details
