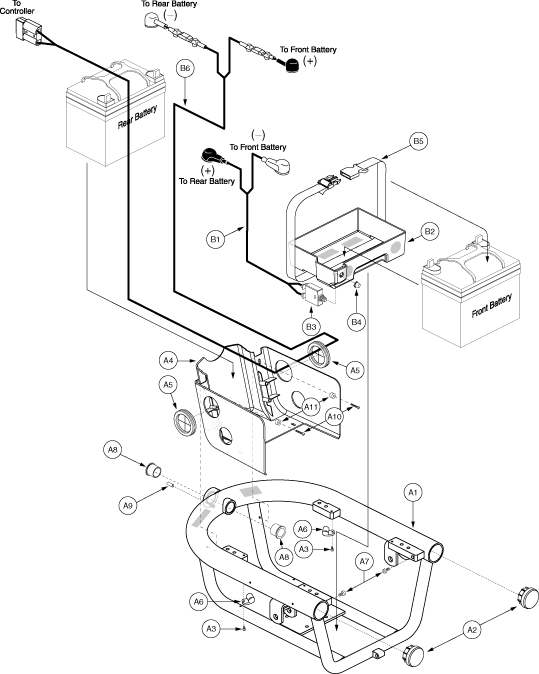

Jazzy 1143 Ultra - Main Frame / Battery Tray - Power Elevating Seat


Pos.
MPN
Details
A1 - A11
FRMASMB6368

FRAME, ASSY, MAIN, JAZZYULTRA

---
A1
DWR1054E002

FRAME, WELDMENT, MAIN, E-1054-002

---
A2
DWR1054C012

Pride Mobility

MAIN TUBE CAP,C-1054-012 (DWR1054C012)

$3.29
View details
A3
SCRPPH1163

Monster Scooter Parts

M4-.7x10 mm Black Pan Head Machine Screw (SCRPPH1163/SCRPPH1050)

$1.69 $1.99
View details
A4
DWR1054E040

SHROUD, BELLY PAN, POWER SEAT, E-1054-040

---
A5
DWR1054B024

GROMMET, RUBBER, HOLE, B-1054-024

---
A6
CLPCBLC1009

Pride Mobility

CLAMP, WIRE,BLACK PLASTIC,3/4" (CLPCBLC1009)

$9.89 $11.25
View details
A7
SCRSHCS1122

Pride Mobility

SCREW, SOCKET HEAD, M8X1.25 X 16, ISO 4762, CL 12.9, BZ (SCRSHCS1122)

$3.29
View details
A8
DWR1054A005

BEARING, FLANGE, OIL IMPREGNATED BRONZE, 20MM ID X 24MM OD X 20MM TH X 28MM FOD X 2MM FTH, A-1054-005

---
A9
DWR1054A008

DOWEL PIN, HARDENED STEEL, M6 OD X 16MM L, A-1054-008

---
A10
SCRPPH1140

SCREW, PPH, BLACK ZINC, M4-.7 X 15MM

---
A11
DWR1054A011

SPACER, BLACK, NYLON, 4MM ID X 12.7MM OD X 8MM TH, A-1054-011

---
B1 - B6
PLSASMB1655

BATTERY, ASSY, TRAY, SMALL, PLASTIC, W/CIRCUIT BREAKER, JAZZYULTRA

---
B1
DWR1054H001
B2
DWR1054D016

COVER, BATTERY TRAY, SMALL, D-1054-016

---
B3
ELEASMB1000

ELECTRONIC,ASSY,CIRCUIT BREAKER,50 AMP,COMPLETE,RIGHT ANGLE TERMINALS,PUSH TO RESET

---
B4
INDPART2148

Monster Scooter Parts

Circuit Breaker Cover for the Pride Revo (SC64) (INDPART2148)

$6.59
View details
B5
ACCSTRP1019

STRAP, BLACK, 36''L, BATTERY, THIN BUCKLE

---
B6
DWR1054H003
View details
