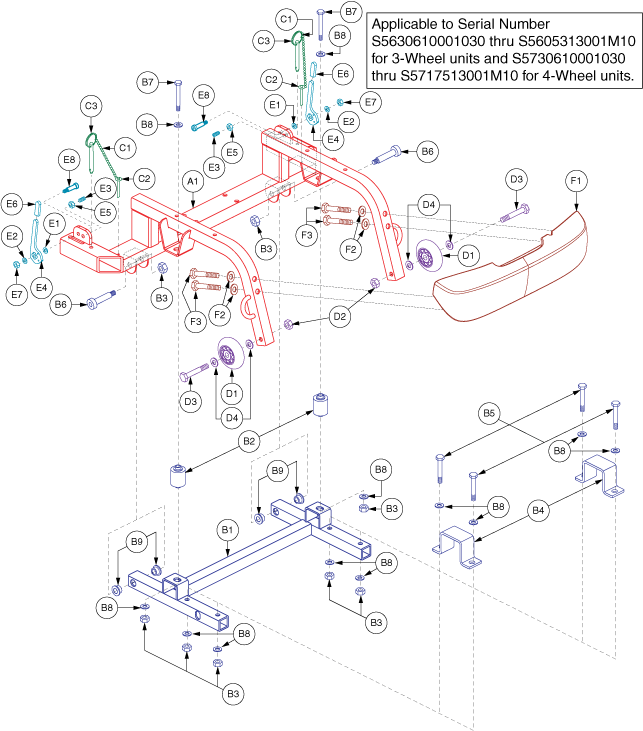

FRAME, ASSY, REAR, S900V
FRAME, REAR, SC900, E-2010-006
FRAME, ASSY, TRAIL ARM, S900V
FRAME, H-FRAME WELDMENT, M4, E-2010-018
ISOLATOR, POLY, SC900, B-2010-009
BRACKET,AXLE,MTS M4 TRANSAXLE,SC3450,C-9660-047
SCREW, HHCS, ZINC, 5/16-18 X 1.75", GRADE 5
BOLT, SHOULDER, 3/8" X 1.50"
SCREW, HHCS, ZINC, 5/16-18 X 2 1/2", G5
WASHER, USS, 5/16"
BUSHING, MOTOR MOUNT, OIL IMPREG. BRONZE, .75" FLANGE OD X .503" SHAFT OD X .378" ID X .5" DEPTH X .094" FLANGE DEPTH, A-9900-004
DETENT RING, ASSY, 1/4" X 2", W/LANYARD
LANYARD, SS BALL CHAIN, #10X4.5"
RIVET, ALUM RIV/MAND, #44 1/8D X 1/4G
PIN, COTTERLESS DETENT W/RING, 1/4" X 2"
WHEEL, ASSY, ANTI-TIP, 3", SOLID COMPOSITE
Monster Scooter Parts
SCREW, HHCS, 5/16-18 X 2 3/4"
WASHER, FLAT, ZINC, 1/4, 0.3125" ID X0.75" OD X 0.0625" TH
CAM LOCK UP, ASSY, LEGEND 2000
WASHER, NYLON, 1/4"ID, 3/4"OD, 1/16"T
WASHER, FENDER, 10 X 3/4"
BALLPLUNGER+FILM, 5/16-18X37/64
CAM HANDLE, STYLE#9 W/ INSERT
NUT, JAM, 5/16-18
COVER, HANDLE, CAM
NUT, NYLOCK, 10-24
BUMPER, ASSY, REAR, SC900/940
BUMPER, REAR, SC900/940
WASHER, LOCK, ZINC, 1/4"
SCREW, HHCS, M6-1.0 X 40MM
