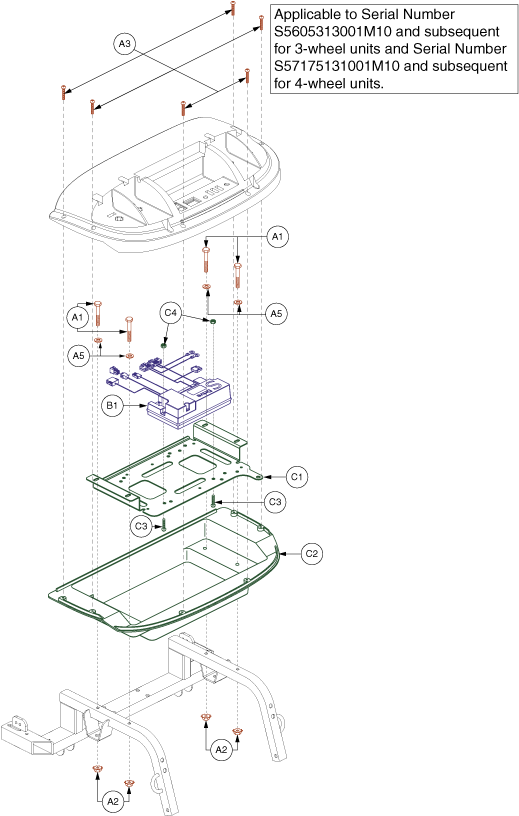

Pride Maxima (SC900) - Controller - S5605313001m10 - Subsequent - Controller

ELECTRONIC, ASSY, MODULE, REAR, MAXIMA

SCREW, HHCS, ZINC, M6-1.0 X 45MM, GRADE 12.9

NUT, KEPS, ZINC, M6-1.0

ELECTRONIC,ASSY,CIRCUIT BREAKER,50 AMP,COMPLETE,RIGHT ANGLE TERMINALS,PUSH TO RESET

COVER, CHARGER, HOLE, PLASTIC, SNAP-IN

PLUG, PLASTIC, SNAP-IN, AMMETER PLUG ADAPTER

Pride Mobility

ELECTRONIC,HARNESS,CONTROLLER INTERFACE,MAXIMA (ELE134588)

Pride Mobility

ELECTRONIC,HARNESS,BATTERY/BREAKER,MAXIMA (ELE134589)

SCREW, PPH, BLACK ZINC, 8-32 X 1.00"

NUT, NYLOCK, ZINC, 8-32

Pride Mobility

REUSABLE FASTENER,LOOP,2" X 1",W/ADHESIVE BACK (VELLOOP1007)

ELECTRONIC, ASSY, CONTROLLER, S-DRIVE, MKII, 120 AMP, MAXIMA

Monster Scooter Parts

120 Amp S-Drive Controller for the Pride Maxima (SC900/SC940) (CTL131569)

ELECTRONIC, HARNESS, BRAKE, FOR 120/140 AMP S-DRIVE

ELECTRONIC, HARNESS, CONTROLLER PROGRAMMING, MAXIMA

Pride Mobility

ELECTRONIC,HARNESS,S-DRIVE,INTERMEDIATE CABLE,MAXIMA (ELE134510)

ELECTRONIC, HARNESS, 3-PIN, RUN PLUG, MALE, S-DRIVE, MAXIMA

Pride Mobility

ELECTRONIC,ASSY,BASEPLATE,REAR ELECTRONICS MODULE,MAXIMA (ELE134503)

BRACKET, CONTROLLER, MAXIMA

ELECTRONIC, BASE, PLASTIC, REAR ELECTRONICS MODULE, CELEBRITY 2000, E-9700-005

Pride Mobility

SCREW, PAN HEAD, TYPE H, M5X0.8 X 30, ISO 7045, CL 4.8, BZ (SCRPPH1315)

Pride Mobility

NUT, HEX, LOCK, M5X0.8, ISO 7040, CL 8, BZ, PVTP (NUTNYLK1062)

Pride Mobility

COVER,ASSY,PLASTIC,REAR ELECTRONICS MODULE,S900V (PLSASMB2167)
