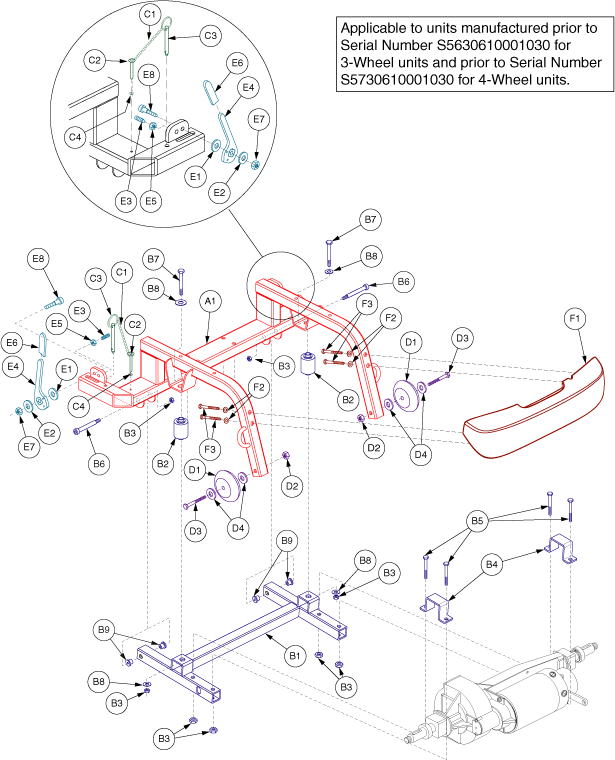

Pride Maxima (SC900) - Frame - Rear - S5630610001030 - Prior


Pos.
MPN
Details
A1 - E8
FRMASMB4908

FRAME, ASSY, REAR, MAXIMA 3/4, SC900/940

---
A1
DWR2010E006

FRAME, REAR, SC900, E-2010-006

---
B1 - B9
FRMASMB4909

FRAME, TRAIL ARM, MAXIMA 3/4, SC900/940

---
B1
DWR2010E007

FRAME, H-FRAME WELDMENT, SC900, E-2010-007

---
B2
DWR2010B009

ISOLATOR, POLY, SC900, B-2010-009

---
B4
DWG9900A030

MOUNTING BRACKET, TRANSAXLE, CELEBRITY 99, A-9900-003

---
B5
SCRHHCS1028

SCREW, HHCS, ZINC, 5/16-18 X 1.75", GRADE 5

---
B6
BLTASHL1053

BOLT, SHOULDER, 3/8" X 1.50"

---
B7
SCRHHCS1138

SCREW, HHCS, ZINC, 5/16-18 X 2 1/2", G5

---
B8
WASUSS1001

WASHER, USS, 5/16"

---
B9
DWG9900A040

BUSHING, MOTOR MOUNT, OIL IMPREG. BRONZE, .75" FLANGE OD X .503" SHAFT OD X .378" ID X .5" DEPTH X .094" FLANGE DEPTH, A-9900-004

---
C1 - C3
HDWASMB1019

DETENT RING, ASSY, 1/4" X 2", W/LANYARD

---
C1
LANBCHN1000

LANYARD, SS BALL CHAIN, #10X4.5"

---
C2
RIVALUM1000

RIVET, ALUM RIV/MAND, #44 1/8D X 1/4G

---
C3
PINCOTD1001

PIN, COTTERLESS DETENT W/RING, 1/4" X 2"

---
D1 - D4
WHLASMB1261

WHEEL, ASSY, ANTI-TIP, 3", SOLID COMPOSITE

---
D1
WHLATIP1004
View details
D2
NUTNYLK1005

Monster Scooter Parts

5/16-18 Lock Nut (NUTNYLK1005)

$1.69
View details
D3
SCRHHCS1152

SCREW, HHCS, 5/16-18 X 2 3/4"

---
D4
WASUSS1000

WASHER, FLAT, ZINC, 1/4, 0.3125" ID X0.75" OD X 0.0625" TH

---
E1 - E8
FRMASMB2258

CAM LOCK UP, ASSY, LEGEND 2000

---
E1
WASNYLN1026

WASHER, NYLON, 1/4"ID, 3/4"OD, 1/16"T

---
E2
WASUSS1006

WASHER, FENDER, 10 X 3/4"

---
E3
BPLSPRG1000

BALLPLUNGER+FILM, 5/16-18X37/64

---
E4
IND6526B001

CAM HANDLE, STYLE#9 W/ INSERT

---
E5
NUTJAM1002

NUT, JAM, 5/16-18

---
E6
PROHDLC1013

COVER, HANDLE, CAM

---
E7
NUTNYLK1002

NUT, NYLOCK, 10-24

---
E8
BLTASHL1006

Pride Mobility

BOLT,SHOULDER,1/4" X 0.50" (BLTASHL1006)

$3.29
View details
F1 - F3
FRMASMB5073

BUMPER, ASSY, REAR, SC900/940

---
F1
PROBUMP1024

BUMPER, REAR, SC900/940

---
F2
WASLOCK1016

WASHER, LOCK, ZINC, 1/4"

---
F3
SCRHHCS1122

SCREW, HHCS, M6-1.0 X 40MM

---
