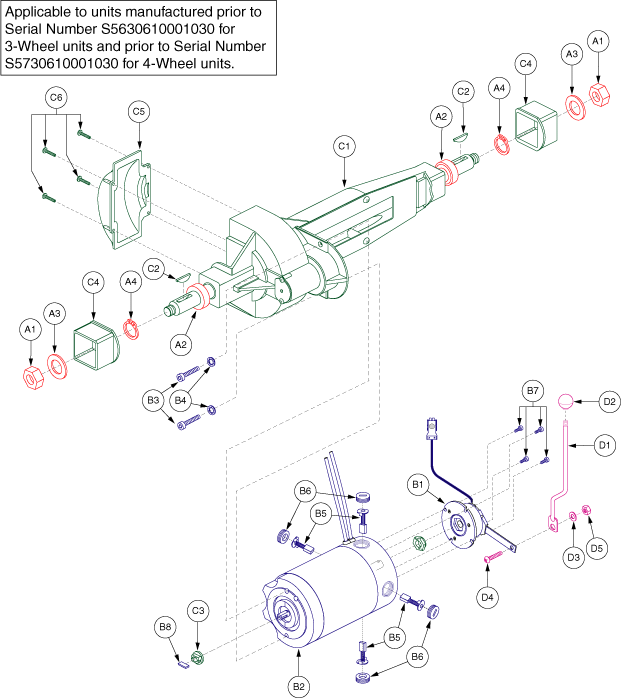

Pride Maxima (SC900) - Drive System - S5630610001030 - Prior


Pos.
MPN
Details
A1 - C6
DRVASMB1472

MOTOR, ASSY, TRANSAXLE/MOTOR/BRAKE, ASI TRANSAXLE HEAVY-DUTY (MK25-18.0:1), LONG SHAFT

---
A1
NUTNJAM1012

Monster Scooter Parts

1/2-20 Zinc-Plated Jam Lock Nut (NUTNJAM1018)

$1.56 $2.95
View details
A2
DWR9550A034

SPACER, STEEL, 19.1MM ID X 32MM OD X 12.7MM TH, ZINC

---
A3
WASSTND1051

Monster Scooter Parts

1/2"x1-1/16" Flat Washer (WASSTND1051)

$0.87 $1.47
View details
A4
RNGRTAN1002

Pride Mobility

RING, RETAINING,3/4" (RNGRTAN1002)

$3.29
View details
B1 - C6
DRVASMB1451

MOTOR, MOTOR/BRAKE ASSY, 4 PIN, ASI TRANSAXLE (MK29A-18)LONG SHAFT

---
B1 - B8
DRVASMB1474

MOTOR, ASSY, BRAKE, 24V, MOTOR (10175-1), 3870 RPM, WARNER BRAKE 6NM, (WR213A82P1)

---
B1
DRV1030
View details
B2
DRVMOTR1180

MOTOR, ASI MOTOR, 24V, 3870 RPM, (10175-1)

---
B3
SCRSHCS1048

Pride Mobility

SCREW, SOCKET HEAD, M6X1.0 X 20, ISO 4762, CL 12.9, BZ (SCRSHCS1048)

$3.29
View details
B4
WASINTH1002

WASHER, LOCK, M6, INTERNAL TOOTH

---
B5
DRVBRSH1009

MOTOR, BRUSH, ASI, MK29

---
B6
INDPART2241

MOTOR, BRUSH, CAP, ASI

---
B7
SCRSHCS1092

Pride Mobility

SCREW, SOCKET HEAD, M4X0.7 X 12, ISO 4762, CL 12.9, BZ (SCRSHCS1092)

$3.29
View details
B8
INDPART2229

KEY, 0.375" X 0.672" X 0.109", SHAFT COUPLER

---
C1 - C6
DRV1034

TRANSAXLE, ASSY, ASI, HEAVY DUTY LONG SHAFT, (MK29A-18)

---
C1
DRVTAXL1017

TRANSAXLE, HEAVY DUTY LONG SHAFT, ASI (MK29A-18)

---
C2
KEYSTL1003

Monster Scooter Parts

Transaxle Woodruff Key for Pride and Go-Go Scooters (KEYSTL1003)

$6.99
View details
C3
INDPART2247

SHAFT COUPLER, ASI

---
C4
INDPART1025

TRANSAXLE, MOUNTING PAD, RUBBER, BLACK, B-1020-033

---
C5
INDPART2251

TRANSAXLE, GEAR, COVER, SC160/170

---
C6
SCRTORX1004

SCREW, TORX, BLACK, BLACK OXIDE, M5-.8 X 15MM

---
D1 - D5
FRMASMB4911

FREEWHEEL, ASSY, RELEASE LEVER, ANGLED, MAXIMA, SC900/940

---
D1
DWR2010B016

FREEWHEEL, WELDMENT, LEVER, MAXIMA, SC900/940, B-2010-016

---
D2
PLSKNCP1034

KNOB, BLACK, M6 X 1.0T, THREADED, SPHERICAL

---
D3
DWR2010A014

SPACER, BLACK, NYLON, 0.313" ID X 0.655" OD X 0.3125" THK

---
D4
SCRPTH1004

SCREW, PTH, 1/4-20 X 1 1/4", G5

---
D5
NUTNYLK1050

NUT, NYLOCK, ZINC, 1/4-20, THIN

---
