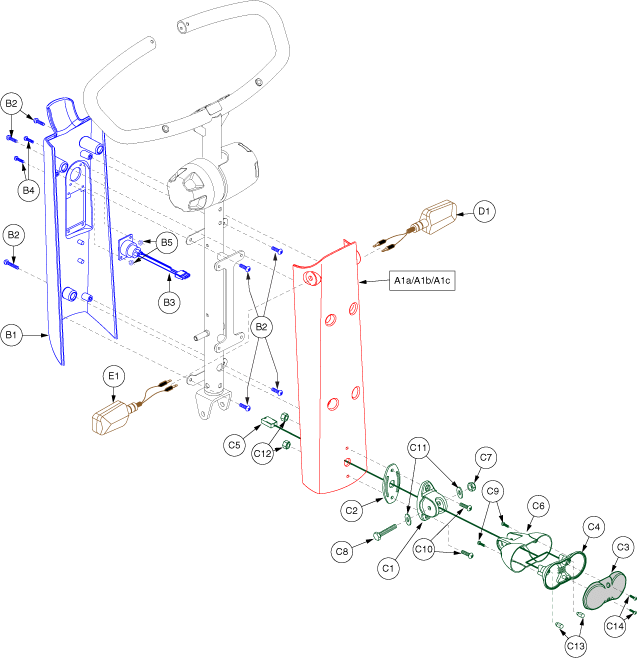

Pride Celebrity XL Heavy Duty 4-Wheel (SC4450DX) - Shroud Assemblies - Tiller


Pos.
MPN
Details
A1a
SHDASMB4794

SHROUD, ASSY, FRONT TILLER, CANDY APPLE RED, WITH BLINKER CUT OUTS, SC4001DX/4401DX

---
A1b
SHDASMB4857

SHROUD, ASSY, FRONT TILLER, VIPER BLUE, WITH BLINKER CUT OUTS, SC4001DX/4401DX

---
A1c
SHDASMB5022

SHROUD, ASSY, FRONT TILLER, CHAMPAGNE, WITH BLINKER CUT OUTS, SC4001DX/4401DX

---
B1 - B5
SHDASMB4795
View details
B1
DWR9565E052

SHROUD, REAR TILLER, RAW, OFF-BOARD CHARGER, SC4001DX/4401DX, E-9565-052

---
B2
SCRPPH1050

SCREW, PAN HEAD, TYPE H, M4X0.7 X 10, FT, ISO 7045, CL 4.8, BZ (USE SCRPPH1163)

---
B3
DWR9555H033
B4
SCRPPH1144

SCREW, PPH, BLACK ZINC, M3-.5 X 12MM

---
C1 - C14
ELEASMB4946

HEADLIGHT, ASSY, LOWER, LEGEND STYLE, DELUXE PIVOT TILLER, SC4001DX/4401DX

---
B5
NUTNYLK1055

NUT, NYLOCK, ZINC, M3-.5

---
C1
DWR9565C093

BASE, MOUNT, CURB LIGHT, SC4001DX/4401DX, C-9565-093

---
C2
DWR9565C094

ADAPTOR, LIGHT, BLACK, RUBBER, SC4001DX/4401DX, C-9565-094

---
C3
DWR9935D016

HEADLIGHT, LENS, PLASTIC, LOWER, SC3000/3400, D-9935-016

---
C4
DWR9935D017

HEADLIGHT, INNER BASE, PLASTIC, SILVER, LOWER, SC3000/3400, D-9935-017

---
C5
DWR9555H022

ELECTRONIC, HARNESS, LOWER HEADLIGHT, SC4001/4401, H-9555-022

---
C6
DWR9935D046

BASE, BLACK PLASTIC, LOWER HEADLIGHT, VERSION 2, SC3000/3400, D-9935-046

---
C7
NUTNYLK1019

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

$0.99
View details
C8
SCRHHCS1196

SCREW, HHCS, BLACK ZINC, M6-1.0 X 40MM

---
C9
SCRPPH1362

SCREW, PPH, BLACK ZINC, M3.5 X 10MM, THREAD FORMING

---
C10
SCRPPH1140

SCREW, PPH, BLACK ZINC, M4-.7 X 15MM

---
C11
WASSTND1113

WASHER, FLAT, BLACK ZINC, M6, STANDARD

---
C12
NUTNYLK1065

Pride Mobility

NUT, LOCK, M4X0.7, ISO 10511, CL 04, BZ, PVTP (NUTNYLK1065)

$3.29
View details
C13
LGTBULB1004

BULB, 24V, C5W

---
C14
SCRPPH1366

SCREW, PPH, ZINC, M3.5 X 10MM, THREAD FORMING

---
D1 - D2
ELEASMB4933

TURN SIGNAL, ASSY, LEFT, FLEXIBLE STALK, NON E-MARKED, SC4001/4401

---
D1
DWR9555H047

ELECTRONIC, HARNESS, TURN SIGNAL, LEFT, NON E-MARKED, SC4001/SC4401, H-9555-047

---
E1 - E2
ELEASMB4934

TURN SIGNAL, ASSY, RIGHT, FLEXIBLE STALK, NON E-MARKED, SC4001/4401

---
E1
DWR9555H046

ELECTRONIC, HARNESS, TURN SIGNAL, RIGHT, NON E-MARKED, SC4001/SC4401, H-9555-046

---
E2
LGTBULB1033

BULB, 24V, MOTORCYCLE STYLE 1820, NON E-MARKED, CCL

---
