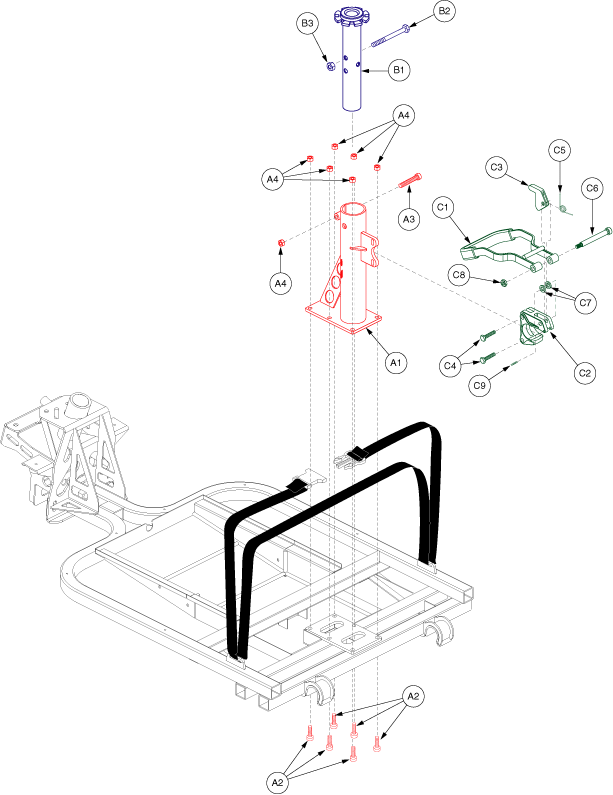

Pride Celebrity XL Heavy Duty 4-Wheel (SC4450DX) - Frame Assemblies - Seat Post

SEAT POST, ASSY, BOLT ON, SC4001/4401

SEAT POST, LOWER, BOLT ON, E-9565-023

Monster Scooter Parts

M6-.1x20 mm Black Allen Socket Machine Bolt (SCRSHCS1192)

SCREW, SHCS, BLACK ZINC, M6-1.0 X 35MM

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

SEAT POST, ASSY, UPPER, 8 POSITION, MULTI-HOLE, W/STAINLESS BUSHING, W/NUT&BOLT, SC4001/4401

SEAT POST, UPPER, 8 POSITION, ADJUSTABLE, W/STAINLESS BUSHING, C-9565-051

SCREW, HHCS, ZINC, M10-1.5 X 55MM, CLASS 10.9

NUT, NYLOCK, ZINC, M10-1.5, CLASS 8

FRAME, ASSY, LOCKUP, SC4001/4401

Pride Mobility

HANDLE,RELEASE,LEVER,SC4001/4401,C-9565-031 (DWR9565C031)

Pride Mobility

LOCK-UP,BOLT-ON,MECHANISM,SC4001/4401,C-9565-027 (DWR9565C027)

Pride Mobility

LOCK-UP,RELEASE,MECHANISM,SC4011/4401,-9565-028 (DWR9565C028)

SCREW, HHCS, BLACK ZINC, M6-1.0 X 25MM, GRADE 12.9

SPRING, TORSION, LINE INDUSTRIES, B-9565-105

BOLT, SHOULDER, 6MM X 50MM

WASHER, FLAT, BLACK ZINC, M6, STANDARD

Pride Mobility

NUT, HEX, LOCK, M5X0.8, ISO 7040, CL 8, BZ, PVTP (NUTNYLK1062)

PIN, ROLL, BLACK, 3MM OD X 16MM L
