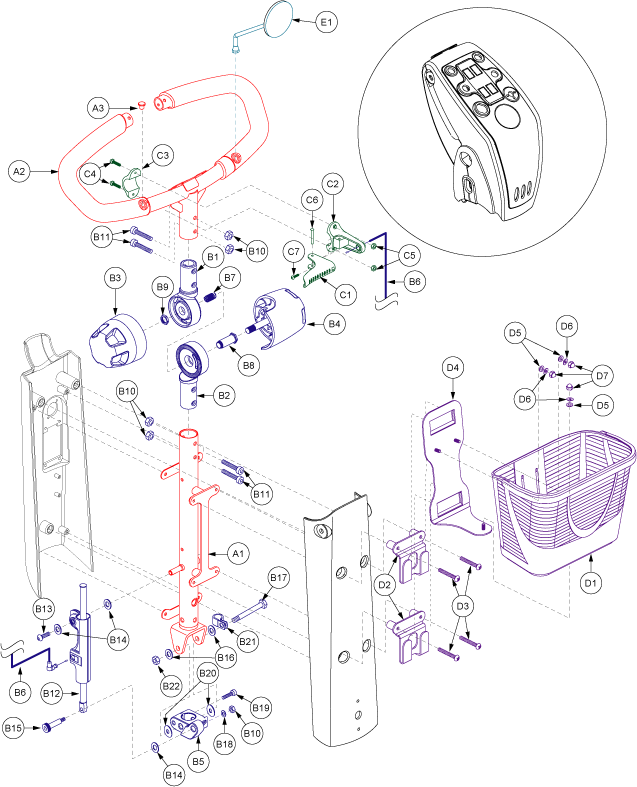

Pride Celebrity XL Heavy Duty 4-Wheel (SC4450DX) - Frame Assemblies - Tiller

TILLER, ASSY, DELTA, MIRROR READY, DELUXE PIVOT, COMPLETE

TILLER, ASSY, DELTA, MIRROR READY, DELUXE PIVOT TILLER

Pride Mobility

TILLER,LOWER WELDMENT,DELTA,BLACK POWDERCOAT,SC4001DX/SC4401DX,E-9565-043 (DWR9565E043)

Pride Mobility

TILLER,UPPER,WELDMENT,DELTA,SC4001DX/SC4401DX,E-9565-044 (DWR9565E044)

PLUG, BLACK, RUBBER, 8MM PLUG DIAMETER, 12MM OVERALL LENGTH, B-9565-079

Pride Mobility

TIEDOWN STRAP, 200 LG, PLASTIC, BLACK, SPEC NO. 2106329-2-50-175-V2 (PLSTIE1004)

TILLER, ASSY, PIVOT, DELUXE PIVOT TILLER, SC4001DX/4401DX

KNUCKLE, UPPER, TILLER ADJUSTMENT, BLACK POWDERCOAT, SC4001DX/4401DX, C-9565-077

KNUCKLE, LOWER, TILLER ADJUSTMENT, BLACK POWDERCOAT, SC4001DX/4401DX, C-9565-078

KNOB, TILLER PIVOT, OVERMOLD, SC4001DX/4401DX, C-9565-089

CAP, TILLER PIVOT, BLACK PLASTIC, SC4001DX/4401DX, C-9565-092

TILLER, BLOCK, STEERING, WELDMENT, BLACK ZINC, RIGHT SIDE MOUNT, CELEBRITY DX, C-9565-074

Monster Scooter Parts

Tiller Release Cable for the Pride Celebrity XL, Pursuit, & Pursuit XL Scooters (DWR9565B096)

SPRING, ADJUSTMENT, UPPER PIVOT, TILLER KNUCKLE, ZINC, SC4001DX/4401DX, B-9565-091

BUSHING, THREADED, BLACK ZINC, SC4001DX/4401DX, B-9565-092

KNUCKLE, TILLER, THIN, BLACK ZINC, HEX NUT, M12, GRADE 8, SC4001DX/SC4401DX, B-9565-090

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

Pride Mobility

SCREW, SOCKET HEAD, M6X1 X 40, ISO 4762, CL 12.9, BZ (SCRSHCS1111)

Monster Scooter Parts

Tiller Actuator for the Pride Celebrity XL, Hurricane, Legend, Legend XL, and Maxima (INDPART2050)

SCREW, BHSCS, BLACK ZINC, M6-1.0 X 10MM

Pride Mobility

SPACER,NYLON,BLACK,16MM OD X 8.5MM ID X 1.5 MM THK,TILLER BLOCK,SC4001DX/4401DX,B-9565-086 (DWR9565B086)

BOLT, SHOULDER, M8 X 20, ISO 7379, CL 12.9, BZ

Pride Mobility

WASHER, FLAT, 8.4 ID X 16 OD X 1.6 THK, ISO 7089-8-200 HV, BZ (USE HDW138262) (WASSTND1102)

SCREW, HHCS, BLACK ZINC, M8-1.25 X 65MM, CUSTOM, GRADE 10.9, B-9565-100

WASHER, FLAT, BLACK ZINC, M6, STANDARD

Pride Mobility

SCREW,SHCS,BLACK,M6-1.0 X 25MM (SCRSHCS1063)

Pride Mobility

WASHER,BLACK,NYLON 6/6,8.5MM ID X 22MM OD X 1.5MM THK,B-9565-101 (DWR9565B101)

CLAMP, CABLE, P CLIP, WITH BLACK VINYL COATING, SC4001DX/SC4401DX, C-9565-103

Monster Scooter Parts

M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)

Pride Mobility

Tiller Adjustment Lever Assembly for Pride Celebrity XL Heavy Duty (SC4450DX), Pursuit (SC713), & Pursuit XL (SC714) (FRMASMB9908)

LEVER, ADJUSTMENT, GRAY, NYLON, DELUXE PIVOT TILLER, SC4001DX/SC4401D, C-9565-098

LEVER, ADJUSTMENT, BASE, BLACK, NYLON, BLACK NYLON, DELUXE PIVOT TILLER, SC4001DX/SC4401DX, C-9565-099

LEVER, ADJUSTMENT, BACK, BLACK, NYLON, DELUXE PIVOT TILLER, SC4001DX/SC4401DX, C-9565-100

Pride Mobility

SCREW,PPH,BLACK ZINC,M3-.5 X 10MM (SCRPPH1021)

NUT, NYLOCK, BLACK ZINC, M3-.5

RIVET, SEMITUBULAR, 3MM OD X 24MM LENGTH, DELUXE PIVOT TILLER LEVER, SC4001DX/SC4401DX, B-1005-131

SCREW, PPH, BLACK ZINC, M4 X 10MM, THREAD FORMING

Monster Scooter Parts

Front Basket Assembly for the Pride Celebrity X (SC4001) (ACCASMB2110)

Monster Scooter Parts

Black Plastic Basket for the Pride Celebrity X (SC4001/SC4401) and the Celebrity XL HD (SC4450DX) (ACCBSKT1017)

BRACKET, MOUNTING, TILLER, BLACK POWDERCOAT, FOR PLASTIC BASKET, SC4001/4401, C-1020-045

Pride Mobility

SCREW, PAN HEAD, TYPE H, M4X0.7 X 30, FT, ISO 7045, CL 4.8, BZ (SCRPPH1143)

BRACKET, MOUNTING, BLACK POWDERCOAT, FOR PLASTIC BASKET, SC4001/SC4401, D-1020-029

WASHER, FLAT, BLACK ZINC, M5

WASHER, LOCK, BLACK ZINC, M5

NUT, NYLOCK, BLACK ZINC, M5-.8, W/PROTECTIVE CAP

Monster Scooter Parts

Rear View Mirror for Pride Mobility Scooters
