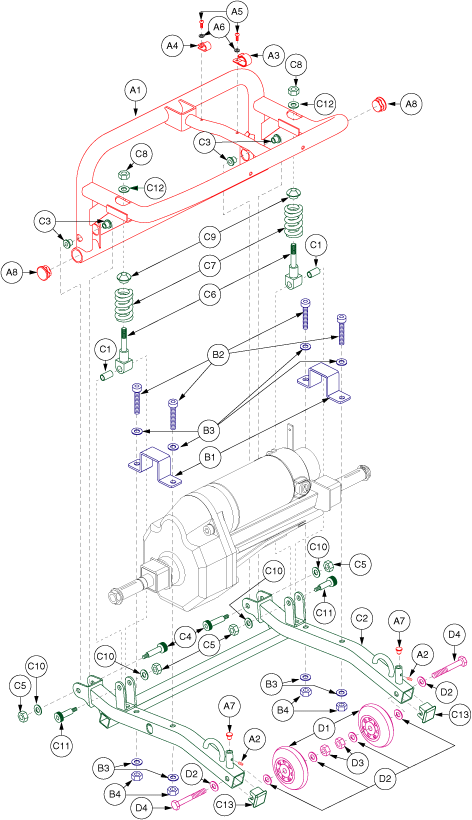

FRAME, ASSY, REAR, CELEBRITY XL, CCL MOTOR PACKAGE, SC4450X
FRAME, WELDMENT, REAR, SC4450X, E-9566-006
Pride Mobility
SCREW, SET, CONE POINT, M4X0.7 X 5, ISO 4027, 45H, STL, BZ (SCRSETS1010)
CABLE CLAMP, STEEL, RUBBER COATED, 11.5MM DIAMETER, C-9565-067
CLAMP, CABLE, BLACK, NYLON, 5/8"
Monster Scooter Parts
M4-.7x10 mm Black Pan Head Machine Screw (SCRPPH1163/SCRPPH1050)
WASHER, FLAT, BLACK ZINC, M4
PLUG, BLACK, RUBBER, 6.81MM PLUG DIAMETER, 13.2MM OVERALL LENGTH, B-9995-030
END CAP, BLACK, PLASTIC, 1" DIA, FITS 0.9" ID TUBE, RIBBED, B-9565-078
FRAME, ASSY, TRANSAXLE MOUNTING, CCL MOTOR PACKAGE, SC4450X
BRACKET, MOUNTING, CCL TRANSAXLE, SC4450X, C-9566-012
SCREW, SHCS, BLACK ZINC, M8-1.25 X 50MM, GRADE 10.9
Pride Mobility
WASHER, FLAT, 8.4 ID X 16 OD X 1.6 THK, ISO 7089-8-200 HV, BZ (USE HDW138262) (WASSTND1102)
SHIM, TRANSAXLE MOUNTING, SC4450X, B-9566-006
FRAME, ASSY, TRAIL ARM, W/STEEL BODIED SHOCKS, SC4450X
Pride Mobility
SLEEVE,REAR STRUT,YELLOW ZINC,M8.10 ID X 10MM OD X 19MM THK,B-9565-048 (DWR9565B048)
FRAME, WELDMENT, TRAIL ARM, SC4450X, E-9566-002
Pride Mobility
BOLT, SHOULDER, 8MM X 35MM, GRADE 12.9, B-1005-006
SUSPENSION, STRUT, BLACK POWDER COAT, M8-1.25 X 16MM L, REAR, SC3000/3400, B-9935-042
SPRING, REAR, 38.10MM FREE LENGTH, SC4450X, B-9566-011
BALL PIVOT/SPRING ROD, ZINC, SC3000/3400, B-9935-043
WASHER, FLAT, BLACK ZINC, M6, STANDARD
Pride Mobility
BOLT, SHOULDER, M8 X 25, ISO 7379, CL 12.9, BZ (BLTASHL1088)
WASHER, POLYURETHANE, 8MM ID X 18MM OD X 2MM THK, A-9935-031
CAP, ANTI-TIP TUBE, REAR FRAME, SC63/64, B-9995-028
Monster Scooter Parts
Monster Scooter Parts
WASHER, FLAT, BLACK ZINC, 8.4MM ID X 16MM OD X 1.2MM TH
Monster Scooter Parts
M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)
SCREW, HHCS, BLACK ZINC, M8-1.25 X 65MM, GRADE 10.9
