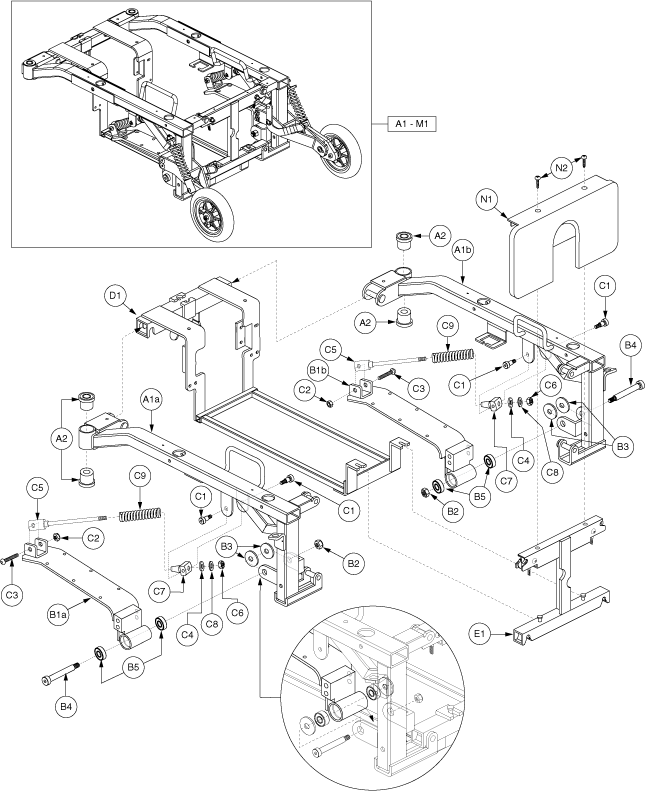

FRAME, ASSY, MAIN, W/ANTI-TIPS, JAZZYSELECT7, E-1114-015
FRAME, ASSY, TAKE APART, JAZZY1113ATS, RIGHT
FRAME, ASSY, TAKE APART, JAZZY1113ATS, LEFT
FRAME, WELDMENT, JAZZY1113ATS, RIGHT, E-1114-004
FRAME, WELDMENT, JAZZY1113ATS, LEFT, E-1114-005
BEARING, FLANGE, BRONZE, 0.50"ID X 0.75"OD X 0.625"TH X 0.875"FOD X 0.125"F
ANTI-TIP, ASSY, MOTOR MOUNT, JAZZY1113ATS, RIGHT
ANTI-TIP, ASSY, MOTOR MOUNT, JAZZY1113-ATS, LEFT
MOUNTING BRACKET, MOTOR MOUNT, RIGHT HAND, 1113-ATS
MOUNTING BRACKET, MOTOR MOUNT, LEFT HAND, JAZZY1113ATS
Monster Scooter Parts
Swing Arm Nut for the Jazzy 1170 XL Plus (NUTNYLK1006)
Pride Mobility
WASHER,NYLON,0.500" ID X 1.125" OD X 0.0625" TH (WASNYLN1018)
BOLT, SHOULDER, 1/2" X 2.50"
BEARING,RADIAL BALL,0.50" ID X 1.125" OD X 0.3125" TH,METAL SHIELD,R8ZZ,A-1010-014
STRUT, ASSY, MOTOR MOUNT, 4.31"LG, 5/16"SHAFT, 1113ATS
BOLT, SHOULDER, 1/4" X 0.25", A-1000-269
Pride Mobility
NUT, LOCK, .250-20, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1014)
SCREW, BHSCS, BO, 1/4-20 X 1.75", GRADE 8
Pride Mobility
WASHER,DAMPER,POLYURETHANE,0.330" ID X 0.90" OD X 0.130" TH,5/16",A-1010-012 (WASDAMP1000)
SUSPENSION, STRUT, 4.31"LG, 5/16"SHAFT, WELDMENT
Pride Mobility
NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1026)
SUSPENSION, PIVOT, SPRING, A-1200-035
WASHER, FLAT, ZINC, 0.3125" ID X 0.625" OD X 0.036" TH
SPRING, BEIGE, 3.00" FL, B-1010-037
FRAME, ASSY, BATTERY TRAY LATCH, JAZZYSELECT7, REAR
FRAME, ASSY, FRONT LOCK, W/OFFSET MOUNTING HOLES, SELECT7
STRUT, ASSY, 6.31"LG, 5/16"SHAFT, HT ADJUSTABLE, 1113ATS
ANTI-TIP, ASSY, FORK, JAZZY1113ATS, RIGHT, D-1114-013
FORK, ASSY, ANTI-TIP, JAZZY1113ATS, LEFT, D-1114-012
FREEWHEEL, ASSY, MOTOR RELEASE LEVER, RIGHT, C-1114-020
FREEWHEEL, ASSY, MOTOR RELEASE BRACKET, LEFT, C-1114-021
Monster Scooter Parts
6" Front Anti-Tip Wheel Assembly for Jazzy, Jet, and Quantum Power Chairs
SCREW, SHFH, BLACK ZINC, 5/16 X 2.50", FULLY THREADED
Pride Mobility
NUT, JAM, PVTP, .3125-18, STL, BZ (DWG 147337) (NUTNJAM1015)
SHROUD, ASSY, BLACK, FRONT LOCK, 1113 SERIES
SHROUD, RAW, FRONT, JAZZY1113
SCREW, PPH-SHEET METAL, ZINC, #8 X 0.50"
