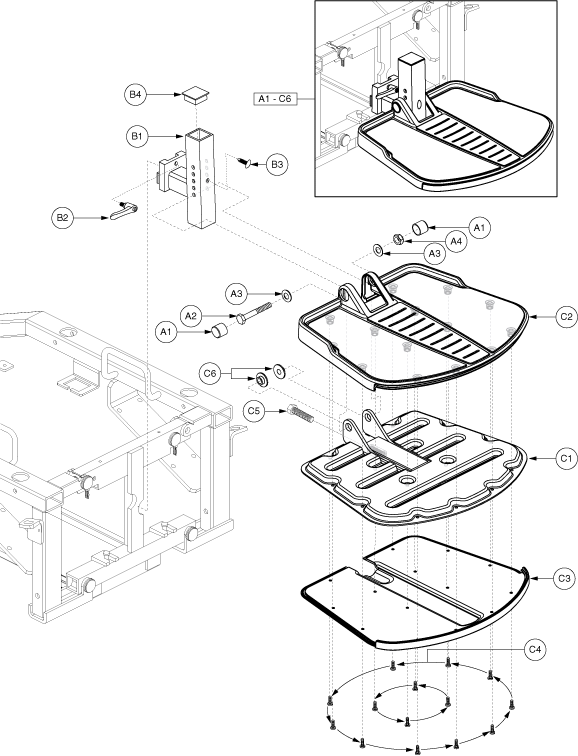

FOOT PLATFORM, ASSY, LARGE, STAMPED, W/MOUNTING BRACKET, JAZZYSELECT7
CAP, VINYL, 0.50" ID, FITS 0.50" - 0.5625" OD, 0.50" H, (MCMASTER CARR: 9753K44)
Monster Scooter Parts
Footrest Assembly Screw for the Jazzy 610 (SCRHHCS1363)
Pride Mobility
Spring Washer for the Jazzy 600 & Quantum Q600 Footrest Assembly (WASWAVY1024)
Monster Scooter Parts
M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)
FOOT PLATFORM MOUNTING BRACKET, ASSY, W/RELEASE LEVER, C-1113-024
FOOT PLATFORM MOUNTING BRACKET WELDMENT, C-1113-023
LEVER, 1/4-20 X 0.39'' THREAD LENGTH X 1.77" HANDLE LENGTH, DIE CAST, (MSC:03782505)
RATCHET FASTENER, BLACK, NYLON, M8 HOLE SIZE X 15MM L
END CAP, PLASTIC, 1.25" SQUARE, FITS 12 GAUGE TUBE, RIBBED
FOOT PLATFORM BASE, ASSY, LARGE, STAMPED, JAZZY, E-1201-015
FOOT PLATFORM, BASE WELDMENT, LARGE, STAMPED, JAZZY, E-1201-013
FOOT PLATFORM, TOP COVER, LARGE, JAZZY, E-1201-009
FOOT PLATFORM, BOTTOM COVER, LARGE, JAZZY, E-1201-008
Pride Mobility
SCREW, PAN HEAD, TYPE H, M4X0.7 X 12, FT, ISO 7045, CL 4.8, BZ (SCRPPH1044)
SCREW, HHCS, BLACK ZINC, M10-1.5 X 30MM
BEARING, FLANGE, BLACK, DELRIN, 8.25MM ID X 13.13MM OD X 7MM TH X 24MM FOD X 2MM FTH, SELF TAP, C-1005-025
