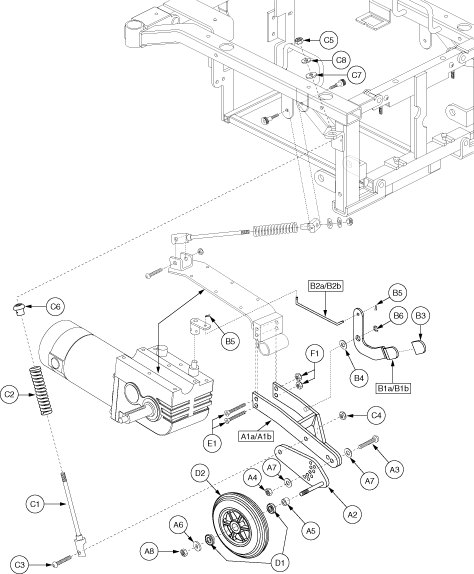

Jazzy Select 7 - Anti-Tip (Front) / Freewheel

ANTI-TIP, ASSY, FORK, JAZZY1113ATS, RIGHT, D-1114-013

FORK, ASSY, ANTI-TIP, JAZZY1113ATS, LEFT, D-1114-012

ANTI-TIP WELDMENT, RIGHT, JAZZY1113ATS, C-1114-008

ANTI-TIP WELDMENT, LEFT, JAZZY1113ATS, C-1114-009

ANTI-TIP, ADJUSTMENT, JAZZY1113-ATS, C-1114-001

Pride Mobility

SCREW, BUTTON HEAD, .250-20 X 1.25, ASTM F835, BZ (SCRASBH1005)

Pride Mobility

SPACER, BLACK, NYLON, 0.32 ID X 0.75 OD X 0.31 THK (SEE DRAWING A1010-018) (SPCNYLN1003)

Pride Mobility

WASHER, FLAT, 0.313 ID X 1.00 OD X 0.188 THK, NYLON (WASNYLN1017)

Pride Mobility

WASHER, FLAT, .25 ID X .63OD X .063THK, ASTM F844, BZ (WASSAE1003)

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

FREEWHEEL, ASSY, MOTOR RELEASE LEVER, RIGHT, C-1114-020

FREEWHEEL, ASSY, MOTOR RELEASE BRACKET, LEFT, C-1114-021

FREEWHEEL, MOTOR RELEASE LEVER, RIGHT, JAZZY1113ATS

FREEWHEEL, MOTOR RELEASE LEVER, LEFT, JAZZY1113ATS

FREEWHEEL, MOTOR RELEASE ROD, RIGHT, JAZZY1113ATS

FREEWHEEL, MOTOR RELEASE ROD, LEFT, JAZZY1113ATS

COVER, HANDLE, STD WIGWAG, BLANK

WASHER, WAVY, 3/8"ID X.013TH

Monster Scooter Parts

Freewheel Assembly Pin for the Jazzy 1121 (PINSOTR1000)

RETAINING RING, E-CLIP, 0.375", EXTERNAL

STRUT, ASSY, 6.31"LG, 5/16"SHAFT, HT ADJUSTABLE, 1113ATS

SUSPENSION, STRUT WELDMENT, 6.31"LG, 5/16"SHAFT, HALF BOTTOM, C-1114-011

SPRING, PURPLE, 3.50" FL, B-1010-038

Pride Mobility

SCREW, BUTTON HEAD, .250-20 X 1.5, FT, ASTM F835, BZ (SCRASBH1007)

Pride Mobility

NUT, LOCK, .250-20, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1014)

Pride Mobility

NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1026)

BALL PIVOT, SPRING ROD, A-1200-023

Pride Mobility

WASHER,DAMPER,POLYURETHANE,0.330" ID X 0.90" OD X 0.130" TH,5/16",A-1010-012 (WASDAMP1000)

Pride Mobility

WASHER, FLAT, TYPE A, .312 N X .688 OD X .065 THK, ASTM F844, BZ (WASSTND1002)

Monster Scooter Parts

6" Front Anti-Tip Wheel Assembly for Jazzy, Jet, and Quantum Power Chairs

Pride Mobility

BEARING,BALL,8MM ID X 22MM OD X 7MM TH,608ZZ (BRGSLV1002)

WHEEL, ANTI-TIP, 6", MOLDED

SCREW, SHFH, BLACK ZINC, 5/16 X 2.50", FULLY THREADED

Pride Mobility

NUT, JAM, PVTP, .3125-18, STL, BZ (DWG 147337) (NUTNJAM1015)
