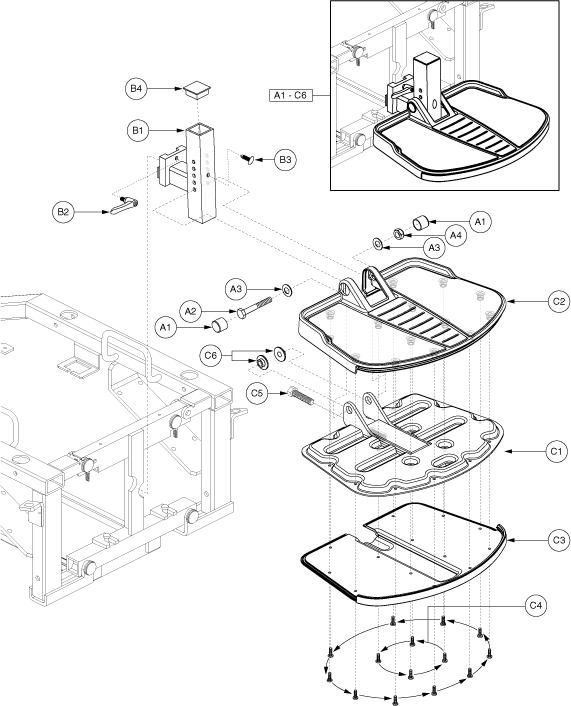

Jazzy Select 7 - Footrest Platform - Footrest Platform W/ Mounting Bracket, Small

FOOT PLATFORM, ASSY, SMALL, STAMPED, W/MOUNTING BRACKET, JAZZYSELECT7

CAP, VINYL, 0.50" ID, FITS 0.50" - 0.5625" OD, 0.50" H, (MCMASTER CARR: 9753K44)

Monster Scooter Parts

Footrest Assembly Screw for the Jazzy 610 (SCRHHCS1363)

Pride Mobility

Spring Washer for the Jazzy 600 & Quantum Q600 Footrest Assembly (WASWAVY1024)

Monster Scooter Parts

M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)

FOOT PLATFORM MOUNTING BRACKET, ASSY, W/RELEASE LEVER, C-1113-024

FOOT PLATFORM MOUNTING BRACKET WELDMENT, C-1113-023

LEVER, 1/4-20 X 0.39'' THREAD LENGTH X 1.77" HANDLE LENGTH, DIE CAST, (MSC:03782505)

RATCHET FASTENER, BLACK, NYLON, M8 HOLE SIZE X 15MM L

END CAP, PLASTIC, 1.25" SQUARE, FITS 12 GAUGE TUBE, RIBBED

FOOT PLATFORM, BASE WELDMENT, SMALL, STAMPED, JAZZY, E-1201-006

FOOT PLATFORM, TOP COVER, SMALL, JAZZY, E-1201-011

FOOT PLATFORM, BOTTOM COVER, SMALL, JAZZY, E-1201-010

Pride Mobility

SCREW, PAN HEAD, TYPE H, M4X0.7 X 12, FT, ISO 7045, CL 4.8, BZ (SCRPPH1044)

SCREW, HHCS, BLACK ZINC, M10-1.5 X 30MM

BEARING, FLANGE, BLACK, DELRIN, 8.25MM ID X 13.13MM OD X 7MM TH X 24MM FOD X 2MM FTH, SELF TAP, C-1005-025
