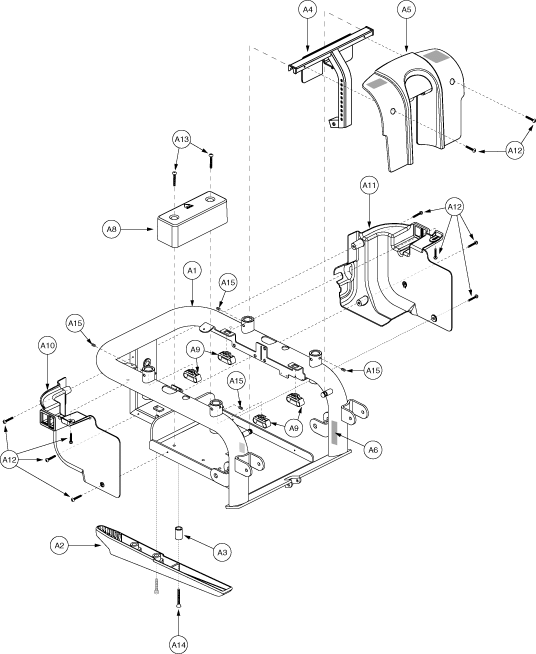

FRAME, ASSY, MAIN, JAZZY1101
FRAME, FRAME WELDMENT, MAIN, JAZZY1101/1121, E-1101-005
BUMPER, SKID BAR, MODIFIED FOR RELEASE HANDLE, C-1101-033
BUSHING, STEEL, 0.335" ID X 0.51" OD X 0.670"TH, A-1101-025
FRAME, BATTERY DOOR WELDMENT, JAZZY1101/1121, E-1101-012
BATTERY, DOOR, JAZZY1101/1121, E-1101-019
DECAL, SERIAL NUMBER, 4" X 6", BARCODE, W/PRIDE LOGO
Pride Mobility
TIEDOWN STRAP, 200 LG, PLASTIC, BLACK, SPEC NO. 2106329-2-50-175-V2 (PLSTIE1004)
BATTERY, SPACER, JAZZY1101/1121, D-1101-018
Pride Mobility
Snap-on Shroud Clip for Jazzy & Quantum Power Chairs (CLISTL1012)
SHROUD, BELLY PAN, RIGHT, JAZZY1101/1121, E-1101-022
SHROUD, BELLY PAN, LEFT, JAZZY1101/1121, E-1101-023
SCREW, PAN HEAD, TYPE H, M4X0.7 X 10, FT, ISO 7045, CL 4.8, BZ (USE SCRPPH1163)
SCREW, BHSCS, BLACK ZINC, M8-1.25 X 140MM, GRADE 10.9
SCREW, SHFH, BLACK ZINC, M8-1.25 X 55MM, GRADE 10.9
