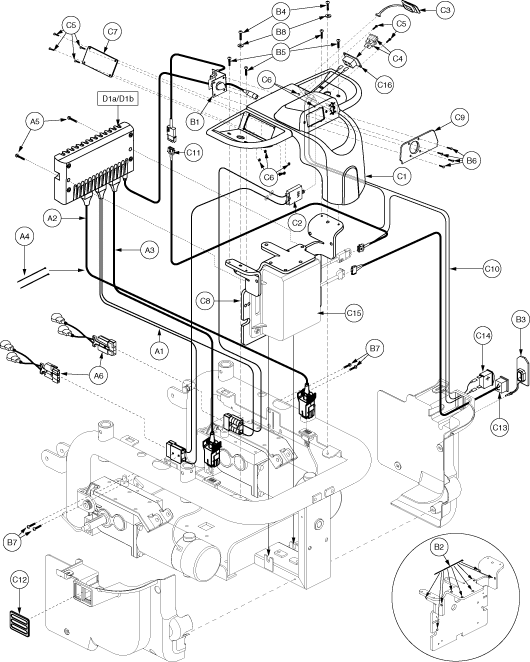

Jazzy 1121 HD - Electronics Tray / Modules - Remote Plus - No Power Seat


Pos.
MPN
Details
A1 - C16
ELEASMB2985

ELECTRONIC, ASSY, REMOTE PLUS TRAY, 80 AMP, JAZZY1101/1121

---
A1
DWR1010H025

ELECTRONIC, HARNESS, BATTERY, REMOTE PLUS, JAZZY1101/1121

---
A2
DWR1010H026

ELECTRONIC, HARNESS, MOTOR CABLE, REMOTE PLUS, RIGHT, JAZZY1101/1121

---
A3
DWR1010H027

ELECTRONIC, HARNESS, MOTOR CABLE, REMOTE PLUS, LEFT, JAZZY1101/1121

---
A5
SCRASBH1080

SCREW, BHSCS, BLACK ZINC, M4-.7 X 30MM

---
A6
ELEASMB2869

ELECTRONIC, ASSY, BATTERY CABLE, W/125A/32V FUSEABLE LINK, QUICK DISCONNECT, H-1122-022

---
B1 - C16
PLSASMB1319

ELECTRONIC, ASSY, REMOTE PLUS UTILITY TRAY, PLASTIC, 80 AMP, JAZZY1101/1121

---
B1
DWR1010H051

ELECTRONIC, HARNESS, POWER INTERFACE/CHARGER CABLE, REMOTE PLUS, RIGHT, H-1010-051

---
B2
PLSTIE1004
View details
B3
INDPART1784

COVER, SOCKET, RUBBER

---
B4
SCRPPH1316

SCREW, PPH, BLACK ZINC, M5-.8 X 15MM, (MTS: 50105036)

---
B5
SCRPPH1044

Pride Mobility

SCREW, PAN HEAD, TYPE H, M4X0.7 X 12, FT, ISO 7045, CL 4.8, BZ (SCRPPH1044)

$3.29 $3.32
View details
B6
SCRPPH1032

Pride Mobility

SCREW,PPH-THREAD CUTTING,BLACK ZINC,6-32 X 0.375",TYPE F (SCRPPH1032)

$3.29
View details
B7
SCRPPH1266

SCREW, PPH, ZINC, M3-.5 X 16MM

---
B8
WASMETR1094

WASHER, FLAT, BLACK ZINC, 5MM ID X 11MM OD X 1.5MM TH

---
C1 - C16
PLSASMB1352

ELECTRONIC, ASSY, TRAY, PARTIAL, JAZZY1101/1121

---
C1
DWR1101E020

ELECTRONIC, TRAY, JAZZY1101/1121

---
C2
ELEASMB1000

ELECTRONIC,ASSY,CIRCUIT BREAKER,50 AMP,COMPLETE,RIGHT ANGLE TERMINALS,PUSH TO RESET

---
C3
DWR1500B045

FUSE MODULE COVER, RUBBER, B-1500-045

---
C4
ELEFUSE1010

Pride Mobility

ELECTRONIC,FUSE,7.5 AMP,ATO (AUTOMOTIVE TYPE),(LITTELFUSE: 25707.5) (ELEFUSE1010)

$19.79 $20.00
View details
C5
SCRPPH1148

Monster Scooter Parts

M3-.5x10 mm Black Pan Head Machine Screw (SCRPPH1148)

$0.42 $0.79
View details
C6
NUTNYLK1072

NUT, NYLOCK, BLACK ZINC, M3-.5

---
C7
DWR1000B297

CAP, PLASTIC, BLANK, 3.32" X 1.60", JAZZY ELECTRONICS TRAY, B-1000-297

---
C8
DWR1101E007

ELECTRONIC, MOUNTING BRACKET, JAZZY1101/1121

---
C9
DWR1101C016

CAP, PLASTIC, BEAU CONNECTOR/REMOTE CAP, C-1101-016

---
C10
DWR1101H002

ELECTRONIC, HARNESS, FUSE AMMETER JUMPER, JAZZY1101/1121

---
C11
HARUSHD2150

ELECTRONIC, HARNESS, CHGR, EXTERNAL FUSE READY, .187 FEMALE CONNECTORS

---
C12
DWR1101C038

AC CAP, BELLY PAN SIDE, SNAP-IN, C-1101-038

---
C13
HARUSHD2112

ELECTRONIC, HARNESS, A/C CHGR INPUT, WITH AMP 1-350346-0

---
C14
ELEMETR1003

ELECTRONIC, AMMETER, 0-6

---
C15
ELEASMB3083

CHARGER, ASSY, ONBOARD, 110V, 5 AMP, SEPARATE POWER CORD, METRIC, GUEST

---
C16
ELEASMB2892

ELECTRONIC, ASSY, FUSE MODULE, W/CONTACTS, QUANTUM BLAST, H-1500-016

---
D1a
ELEASMB5044

CONTROLLER, REMOTE PLUS, ASSY, 80 AMP, JAZZY SERIES PROGRAM

---
D1b
ELEASMB5045

CONTROLLER, REMOTE PLUS(PROFILES), ASSY, 80 AMP, JAZZY SERIES PROGRAM

---
