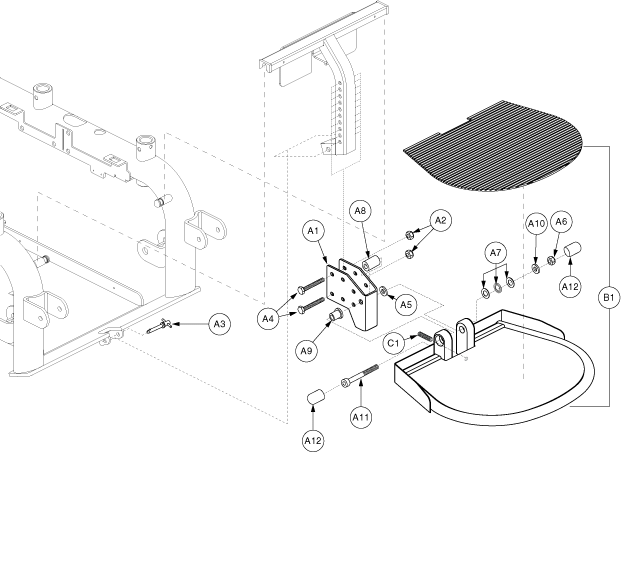

FOOT PLATFORM, ASSY, HD STEEL, 13.5"W, 11"D, W/MOUNTING BRACKET, JAZZY1121HD
MOUNTING BRACKET, ASSY, FOOT PLATFORM, JAZZY1101/1121
FOOT PLATFORM MOUNTING BRACKET, C-1101-010
QUICK RELEASE PIN, 6MM DIA X 38.1MM GRIP LENGTH, W/"T" HANDLE, B-1101-014
SCREW, HHCS, BLACK ZINC, M6-1.0 X 40MM, GRADE 10.9
Monster Scooter Parts
Footrest Platform Black Washer for the Jazzy 600 (WASNYLN1066)
BEARING, BALL THRUST, STAINLESS STEEL, 0.3125" ID X 0.625" OD X 0.193" TH, (MCMASTER-CARR: 6655K34)
SPACER, STEEL, 0.328" ID X 0.50" OD X 1.00" TH, B-1010-090
FOOT PLATFORM MOUNTING SLEEVE, FLANGE, STEEL, B-1000-458
SPACER, STEEL, 0.328" ID X 0.50" OD X 0.076" TH, B-1000-459
Pride Mobility
SCREW, SOCKET HEAD, M8X1.25 X 80, ISO 4762, CL 12.9, BZ (SCRSHCS1170)
CAP, VINYL, 0.50" ID, FITS 0.50" - 0.5625" OD, 0.50" H, (MCMASTER CARR: 9753K44)
FOOT PLATFORM, ASSY, HD STEEL, 13"W, 11"D, W/MAT & HARDWARE, E-1000-191
Pride Mobility
SCREW,SET,BLACK ZINC,3/8-24 X 1.50",W/NYLON PATCH (SCRSETS1090)
