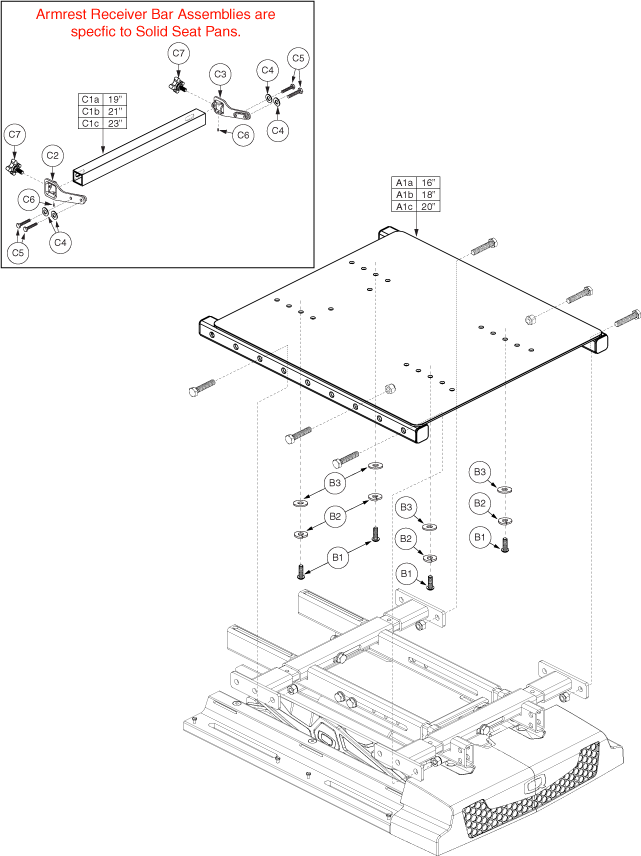

Quantum Q6 Edge - Seat Mounts / Interface - 10 In. Lift Option For Captains Seat - Seat Pans - High Back, Ltd Recline,Ssp

SEAT FRAME, ASSY, 115 LTD REC HINGE W/SSP, UNIVERSAL W/LIFT, 16"W

SEAT FRAME, ASSY, 115 LTD REC HINGE W/SSP, UNIVERSAL W/LIFT, 18"W

SEAT FRAME, ASSY, 115 LTD REC HINGE W/SSP, UNIVERSAL W/LIFT, 20"W

Pride Mobility

WASLOCK1000 - Black Zinc Steel Regular Spring Lock Washer, 0.25 ID x 0.47 OD x 0.068 Thick, ASME B18.21.1

Pride Mobility

FRMASMB5815 - 19"W Armrest Receiver Bar Assembly, 115° Limited REC Hinge for Pride Jet Power Chairs

Pride Mobility

FRMASMB5816 - 21"W Armrest Receiver Bar Assembly, 115° Limited REC Hinge for Pride Jet Power Chairs

Pride Mobility

FRMASMB5818 - 23"W Armrest Receiver Bar Assembly, 115° Limited REC Hinge for Pride Jet Power Chairs

Monster Scooter Parts

DWR1200C122E - 19" Seat Cross Bar for Pride Scooters & Jazzy Power Chairs

Monster Scooter Parts

DWR1200C122G - 21" Receiver Bar for the Jazzy 1113

Pride Mobility

DWR1200C122I - 23" Seat Cross Bar

Pride Mobility

DWR1010D213 - Right Hinge Connector Bracket Weldment for 115° Limited Recline Seats

Monster Scooter Parts

DWR1010D214 - Left Side Seat Hinge Connector Bracket Weldment for Pinchless Seats on the Jazzy & Jet Power Chairs

Pride Mobility

WASSTND1002 - Black Zinc Type A Flat Washer, 0.312 N x 0.688 OD x 0.065 Thick, ASTM F844

Pride Mobility

SCRHHCS1207 - Black Zinc Hex Head Screw, 0.3125-24 x 1.0, SAE J429, GR 5

Pride Mobility

SCRSETS1013 - Cup Point Set Screw, 0.250-20 x 0.25, ASTM F912, BO

Pride Mobility

DWR1000B152 - Armrest Lock Knob for Pride Go-Go, Victory, Jazzy & Quantum Scooters and Power Chairs
