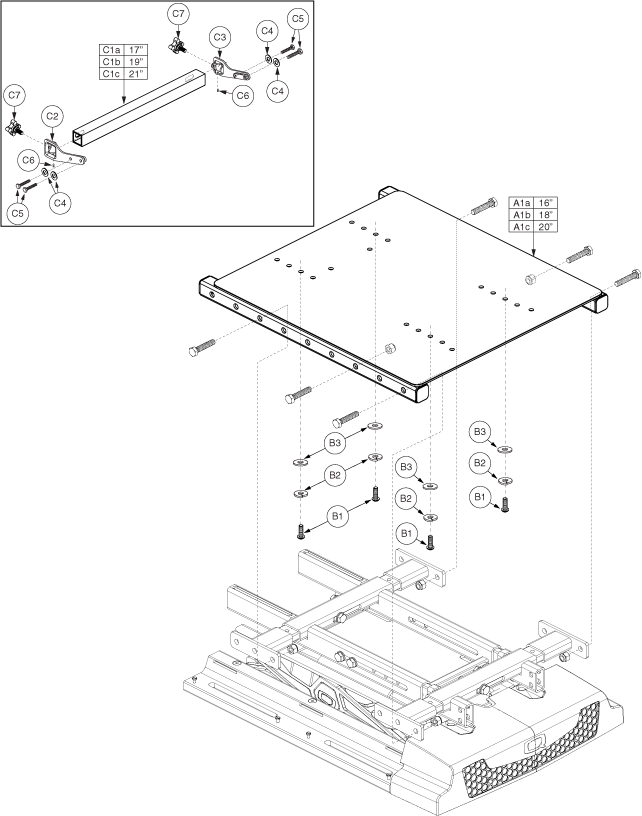

Pos.

MPN

Details

A1a

SET163070

SEAT FRAME, ASSY, 16"W, JAZZY SEAT

---

A1b

SET163071

SEAT FRAME, ASSY, 18"W, JAZZY SEAT

---

A1c

SET163072

SEAT FRAME, ASSY, 20"W, JAZZY SEAT

---

B1

SCRHHCS1373

Close-up of the 1/4-20 x 1 Seat Platform Bolt (SCRHHCS1373), a metal fastener commonly used in Jazzy and Jet power chair seat bases, showcasing its threaded shaft and hexagonal head.

Monster Scooter Parts

1/4-20 x 1" Seat Platform Bolt (SCRHHCS1373)

$0.47

B2

WASLOCK1000

Pride Mobility

WASHER, REGULAR SPRING LOCK, .25 ID X .47 OD X .068 THK, ASME B18.21.1, STL, BZ (WASLOCK1000)

$6.59 ~~$7.38~~

C1a - C7

FRMASMB5812

Pride Mobility

ARMREST RECEIVER BAR,ASSY,115° LTD REC HINGE,17"W,JET (FRMASMB5812)

$47.29

C1b - C7

FRMASMB5815

Pride Mobility

ARMREST RECEIVER BAR,ASSY,115° LTD REC HINGE,19"W,JET (FRMASMB5815)

$142.99

C1c - C7

FRMASMB5816

Pride Mobility

ARMREST RECEIVER BAR,ASSY,115° LTD REC HINGE,21"W,JET (FRMASMB5816)

$64.89 ~~$66.48~~

C1a

DWR1200C122C

17 Seat Cross Bar for Pride Scooters & Jazzy Power Chairs, a long black metal bar with holes, essential for supporting armrest frames and accessory brackets in 16 width seating.

Monster Scooter Parts

17" Seat Cross Bar for Pride Scooters & Jazzy Power Chairs (DWR1200C122C)

$30.79

C1b

DWR1200C122E

19 Seat Cross Bar for Pride Scooters & Jazzy Power Chairs, black metal bar with holes, essential for supporting armrest frames and accessory brackets on Hi-Back Deluxe Contour Seats.

Monster Scooter Parts

19" Seat Cross Bar for Pride Scooters & Jazzy Power Chairs (DWR1200C122E)

$47.29

C1c

DWR1200C122G

Monster Scooter Parts

21" Receiver Bar for the Jazzy 1113 (DWR1200C122G)

$49.49

C2

DWR1010D213

Pride Mobility

HINGE,HINGE CONNECTOR BRACKET WELDMENT,115Â° LTD REC,RIGHT,D-1010-213 (DWR1010D213)

$46.19

C3

DWR1010D214

Left Side Seat Hinge Connector Bracket Weldment for Pinchless Seats on Jazzy & Jet Power Chairs, shown as a close-up of a black metal tool with white text, fits onto the seat cross bar.

Monster Scooter Parts

Left Side Seat Hinge Connector Bracket Weldment for Pinchless Seats on the Jazzy & Jet Power Chairs (DWR1010D214)

$43.99

C4

WASSTND1002

Pride Mobility

WASHER, FLAT, TYPE A, .312 N X .688 OD X .065 THK, ASTM F844, BZ (WASSTND1002)

$3.29

C5

SCRHHCS1207

Pride Mobility

SCREW, HEX HEAD, .3125-24 X 1.0, SAE J429, GR 5, BZ (SCRHHCS1207)

$3.29

C6

SCRSETS1013

Pride Mobility

SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO (SCRSETS1013)

$3.29

C7

DWR1000B152

Armrest Lock Knob for Pride, Go-Go, Jazzy, Jet, and Quantum Scooters and Power Chairs, featuring a black knob with an attached screw, designed to adjust and secure armrests for user comfort.

Monster Scooter Parts

Armrest Lock Knob for Pride, Go-Go, Jazzy, Jet, and Quantum Scooters and Power Chairs (DWR1000B152)

$3.99
