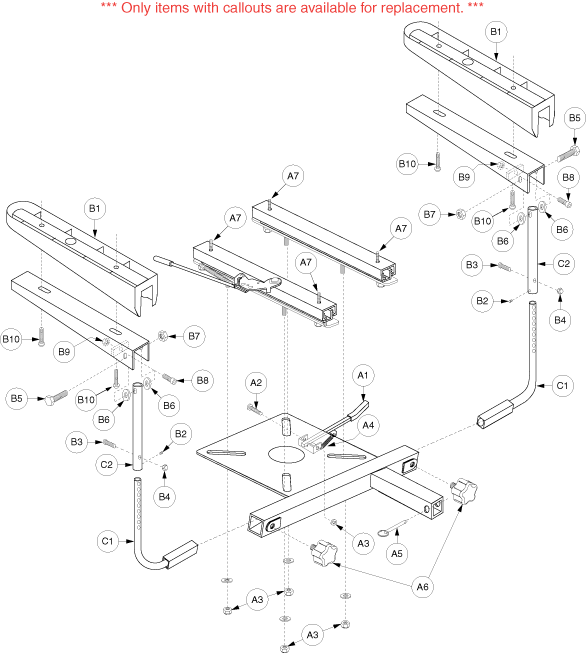

Pride Wrangler (PMV 600) - Seat Frame

Monster Scooter Parts

Freewheel Handle/Brake Release Cover for Jazzy 1170 XL (PROHDLC1003)

Monster Scooter Parts

1/4-20x1.75" Hex Head Bolt (SCRHHCS1027)

NUT, NYLOCK, ZINC, 1/4-20

Pride Mobility

SPRING, RAW,1.84" FL X 0.056" WIRE DIA,PLATED,SEAT HANDLE (SPGRAW1001)

Monster Scooter Parts

3/8" x 3-3/8" Quick Release Seat Pin for Pride and Jazzy Rear Basket Assemblies

KNOB, 3/8-16 X 1/2" STUD, FLUTED, SOFT TOUCH (3812), B-1020-005

SCREW, PPH, ZINC, 1/4-20 X 1 1/4", W/NYLON PATCH, G8.8

Monster Scooter Parts

Full Length Armrest Cover for Pride Mobility Scooters and Power Chairs (DWG1200D560)

SCREW, SET, 1/4-20 X 0.1875", CUP POINT

Pride Mobility

SCREW, BUTTON HEAD, .250-20 X 1.25, ASTM F835, BZ (SCRASBH1005)

NUT, ACORN, 1/4-20

Pride Mobility

SCREW,HHCS,BLACK ZINC,5/16-18 X 1.75",GRADE 8 (SCRHHCS1183)

WASHER, NYLON, 0.360" ID X 0.620" OD X 0.062" TH

Pride Mobility

NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1026)

SCREW, SHCS, BLACK ZINC, 5/16-24 X 1.50"

NUT, JAM, BLACK ZINC, 5/16-18

SCREW, PPH, ZINC, 1/4-20 X 0.750"

ARMREST, ASSY, ADJUSTABLE, SUPPORT W/ARM EXTENSION, STANDARD SEAT PLATE

SUPPORT, ARMREST, ADJUSTABLE, C-5500-051

ARM, EXTENSION, B-5500-025
