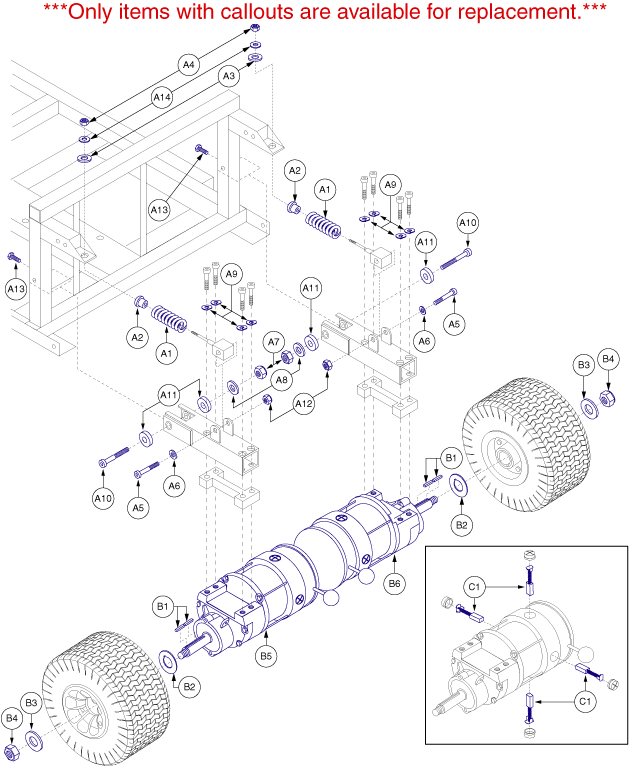

Pride Wrangler (PMV 600) - Drive System - 36 Volt Motors

SPRING, BLACK, 3.00" FL X 0.562" ID X 0.187" WIRE DIA

BALL PIVOT, SPRING ROD, A-1200-023

Pride Mobility

WASHER,DAMPER,POLYURETHANE,0.330" ID X 0.90" OD X 0.130" TH,5/16",A-1010-012 (WASDAMP1000)

NUT, NYLOCK, 5/16-24

BOLT, SHOULDER, 3/8" X 1.25"

WASHER, FLAT, ZINC, 1/2"ID X 1 1/4"OD X 3/16"T

Monster Scooter Parts

Swing Arm Nut for the Jazzy 1170 XL Plus (NUTNYLK1006)

Monster Scooter Parts

1/2"x1-1/16" Flat Washer (WASSTND1051)

Pride Mobility

WASHER, HEAVY SPRING LOCK, .375 ID X .688 OD X .115 THK, ASME B18.21.1, STEEL, BZ (WASLOCK1014)

BOLT, SHOULDER, 1/2" X 2.75"

BEARING, THRUST, 1/2"ID X 1"OD X 1/16"T, OIL IMPREGNATED

Monster Scooter Parts

5/16-18 Lock Nut (NUTNYLK1005)

SCREW, HHCS, BLACK ZINC, 1/4-20 X 0.50", GRADE 8

WASHER, FLAT, ZINC, 1/4, 0.3125" ID X0.75" OD X 0.0625" TH

Monster Scooter Parts

3/16" x 3/16" x 7/8" Axle Key (KEYSTL1006)

WASHER, ZINC, .750"ID X 1.25"OD X .030"THK, STAMPED W/KEYWAY

WASHER, FLAT, BLACK ZINC, 1/2"ID X 1"OD X 1/16"T

Monster Scooter Parts

1/2-20 Zinc-Plated Jam Lock Nut (NUTNJAM1018)

MOTOR, LEFT, (SHIHLIN: A9Y1X03872)

MOTOR, RIGHT, (SHIHLIN: A9Y1X03871)

MOTOR, BRUSH, 11MM X 7MM X 25MM, WRANGLER 36V, (SHIHLIN: AY647D01272)
