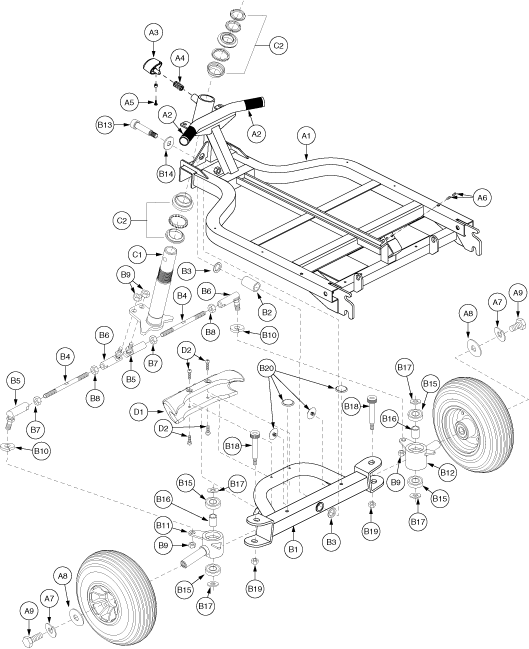

FRAME, ASSY, FRONT, SC64
FRAME, FRONT WELDMENT, SC64, E-9990-001
REUSABLE FASTENER, HOOK, 3"L X 1"W, W/ADHESIVE BACK
KNOB, STEERING LOCK, C-9905-016
SPRING, 15.5MM FL X 0.90MM WIRE DIA X 10.80MM OD X RATE: 2.46N/MM, (LEE SPRING: LCM-090F-3), B-9983-044
Pride Mobility
SCREW, SOCKET HEAD, M4X0.7 X 20, ISO 4762 CL 12.9, BZ (SCRSHCS1096)
SCREW, SET, BLACK ZINC, M6-1.0 X 10MM
WASHER,LOCK,ZINC,M8 X 15MM OD X 2MM TH
WASHER, FLAT, ZINC, M8 X 22MM OD X 2MM TH
SCREW, HHCS, M8-1.25 X 15MM
GUIDE TUBE, BATTERY LOCK-UP, SC63/64, B-9995-027
NUT, JAM, BLACK ZINC, M10-1.5
WASHER, EXTERNAL TOOTH, M10, LOCK
AXLE, ASSY, FRONT, SC64
AXLE, ARM, WELDMENT, SC64, E-9990-002
SLEEVE, AXLE ARM, 12.10MM ID X 15MM OD X 35.80MM L, SC64, A-9990-002
SPACER, AXLE ARM, 15.1MM ID X 22MM OD X 1.0MM THK, SC64, A-9990-003
TIE ROD, SC64, B-9990-004
Monster Scooter Parts
M8-1.25 Tie Rod Nut for 4-Wheel Go-Go & Pride Scooters
Monster Scooter Parts
M8-1.25 Tie Rod Nut for 4-Wheel Go-Go & Pride Scooters
Monster Scooter Parts
M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)
WASHER, LOCK, M8, HIGH COLLAR
FRAME, WELDMENT, SPINDLE, LEFT, SC64, C-9990-002
FRAME, WELDMENT, SPINDLE, RIGHT, SC64, C-9990-003
BOLT, SHOULDER, M12 X 40MM
WASHER, FLAT, BLACK ZINC, M12
BEARING, BALL, 12MM ID X 28MM OD X 8MM THK, (6001Z)
SPINDLE SLEEVE, 13MM ID X 16MM OD X 20.57MM L, SC64, A-9990-007
SPINDLE SPACER, 12MM ID X 28MM OD X 2.5MM TH, SC64, A-9990-008
BOLT, SHOULDER, 12MM X 50MM
Pride Mobility
NUT, LOCK, PVTP, M10X1.5, ISO 898-2, CL 8, BZ (DWG 1714169)
BEARING, CAP, SC3400, B-9940-010
STEERING STEM, ASSY, SC64
STEERING STEM, WELDMENT, SC64, C-9990-001
KIT, BEARING/RACE, MFGR GLOBAL FAB TECH
BUMPER, ASSY, FRONT, SC64
BUMPER, FRONT, SC64, C-9990-013
SCREW, PPH, BLACK ZINC, M4-.7 X 15MM
